Empire Ergo-Blast Ergonomic Blast Cabinets
Empire Ergo-Blast Ergonomic Blast Cabinets
SKU:EMP-7403fd
Enhance productivity and operator comfort with Empire Ergo-Blast Cabinets, designed for efficient and ergonomic industrial blasting applications.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
Empire Ergo-Blast Ergonomic Blast Cabinets
$5,999.99
Quantity: 1
Claim Your Seller Account
Empire Ergo-Blast Ergonomic Blast Cabinets
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

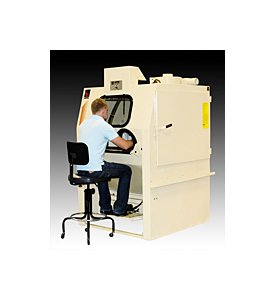

Empire Ergo-Blast Cabinets are designed to reduce operator fatigue and enhance productivity in industrial blasting applications. Featuring ergonomic elements such as a padded armrest, elevated foot rest, and top-entry piping, these cabinets prioritize operator comfort during long blast cycles. With a tunable media reclaimer, pressure/suction blast options, and advanced dust collection systems, the Ergo-Blast cabinets offer versatility and efficiency. Backed by the industry-leading Empire Pro-Finish® line, these cabinets ensure rugged durability and performance excellence for a wide range of abrasive blasting needs.
Product Specifications
Features Ergo Blast Cabinet Features
Ergo-Blast Cabinet Features
Popular Options 0

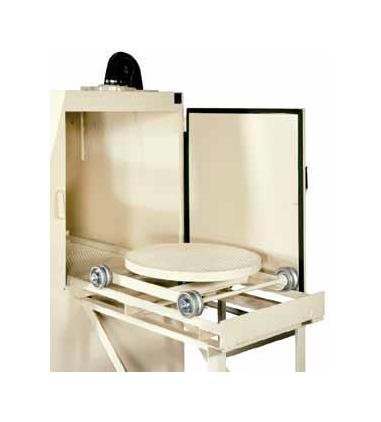

Cartridge & bag-house dust collectors capture 99% of all particles one micron or larger, normally permitting recirculation of air to the workplaceExtended-wear options prolong equipment life while minimizing maintenance and downtime. Options include: rubber curtains in black or white; window protectors; heavy-duty, media-conveying duct; and DiCarb® or boron nozzles. Reclaimers can be upgraded with replaceable wear plates and urethane or Ultrawear linings.Automatic bag shaker frees operator for other tasks with bag-house dust collectors.Fully automatic photohelic controls purge dust from cartridge type collectors without operator assistance.Rubber safety mats, placed around Ergo-Blast cabinets, keep the immediate work area clean and reduce operator fatigue.Turntables facilitate handling of heavy parts.
Specifications Ceramic Pressure Nozzle Diameter
3/16 in
Specifications Door Opening Height
22 in
Specifications Door Opening Width
20 in
Specifications Exhaust Fan Motor
1 hp
Specifications Interior Dimensions D X W X H
26 x 36 x 30 in
Specifications Overall Dimensions Cabinet D X W X H
28 x 42 x 70 in
Specifications Reclaimer Ventilation Rate
400 cfm | 600 cfm
Specifications Silicon Carbide Pressure Nozzle Diameter
5/16 in
Specifications Standard Number Of Doors
1
Standard Features 0
Sit-down configurationPadded exterior armrest with swivel controlGlove rings with interior armrestsElevated foot rest for control treadleTop-entry blast hoseFront-mounted pressure regulatorMedia-catch trays underneath doorsKleensweep⢠for improved visibilitySound attenuatorRubber, cloth-lined gloves90-watt spotlightsDust-off gunPneumatic foot-treadle control14 x 22" safety-glass windowGeneral purpose filterLeveling boltsOSHA door switch14-gauge construction3/16" perforated floor with 1000-lb capacitySure-Flo® media regulator (pressure systems)One-cubic-foot ASME pressure vessel (pressure systems)
Warranty 0
BEST WARRANTY IN THE INDUSTRYThree-years limited on partsEmpire Air-Blast ProductsA complete range of cabinetsRobotic, turntable and in-line automationBlast rooms and blast boothsPortable blastersA full line of parts and accessoriesNEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENTInformation subject to change without notice.
