Empire Pro-Finish Blast Cabinets
Empire Pro-Finish Blast Cabinets
SKU:EMP-c61fbe
Enhance productivity and precision with Empire's Pro-Finish Blast Cabinets. Ideal for surface blasting and finishing tasks. Choose from suction or pressure systems for efficient operation.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Empire Pro-Finish Blast Cabinets
$6,999.99
Quantity: 1
Claim Your Seller Account
Empire Pro-Finish Blast Cabinets
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your surface finishing operations with Empire's Pro-Finish Blast Cabinets. Designed for production blasting, these rugged cabinets offer precision and efficiency for tasks like blending surface flaws and removing foreign matter without impacting tolerances. Choose from suction or pressure blast systems to enhance productivity and control. With modular design and a range of options, tailor a system that fits your specific applications while reducing operating and maintenance costs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Pro Finish Blast Cabinet Features
Pro Finish Blast Cabinet Features

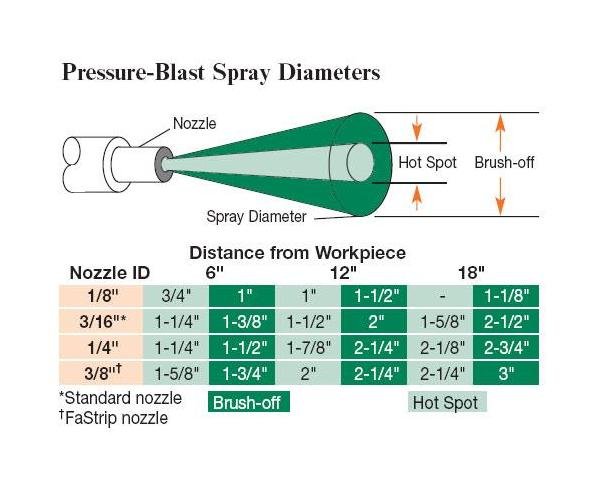

Specifications Ceramic Pressure Nozzle Diameter
3/16 in

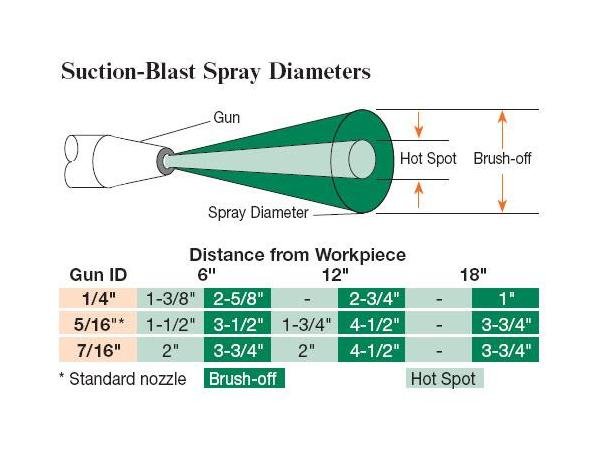

Specifications Ceramic Suction Nozzle Air Jet Diameter
5/16 - 5/32 in
Specifications Door Opening Height
22 in
Specifications Door Opening Width
20 in
Specifications Exhaust Fan Motor
1 hp

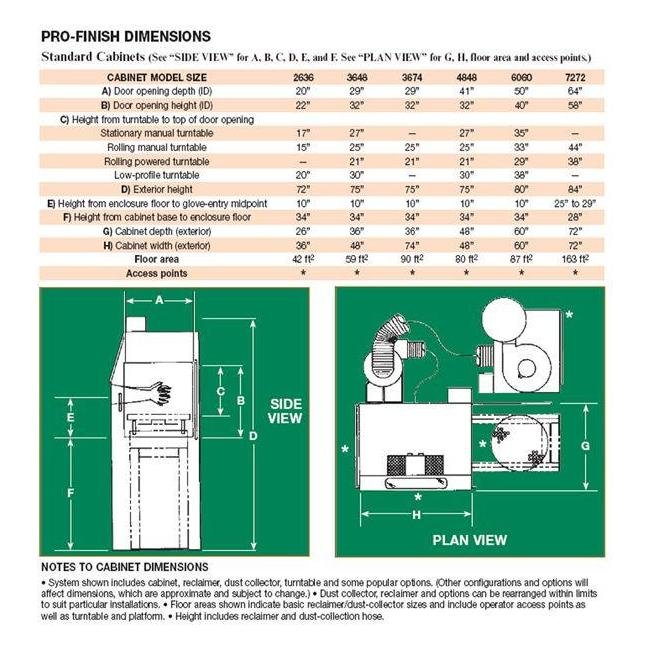

Specifications Interior Dimensions
26 x 36 x 30 in
Specifications Overall Dimensions
28 x 42 x 70 in
Specifications Pressure Suction Piping Diameters
1-1/2 in
Specifications Pro Finish Options

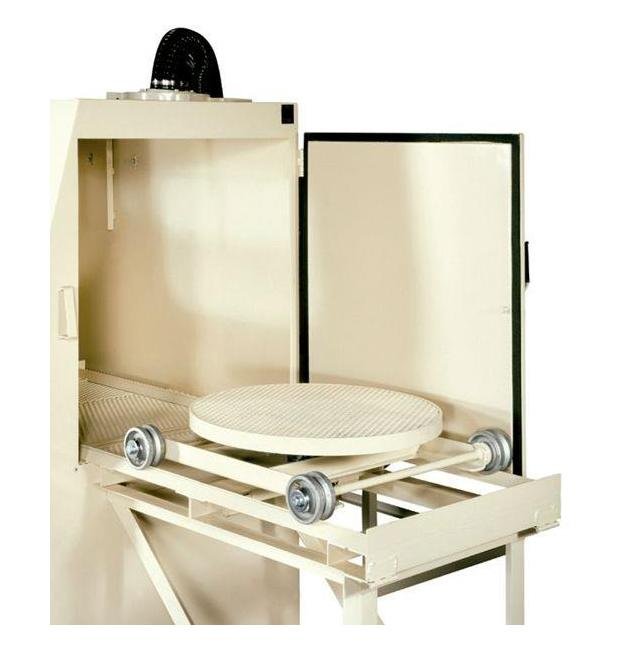

Turntables facilitate handling of heavy parts. (Manual turntable with dolly and outside platform shown to right.)Additional nozzles or guns (up to a total of two nozzles with pressure and up to four guns with suction) automate the blasting process when synchronized with powered oscillators and turntables.Rotating basket with timer speeds processing of smaller parts.Fixed-gun holder with adjustable arm frees both operator hands for parts blasting.Extended-wear options prolong equipment life while minimizing maintenance and downtime. Options include: rubber curtains in black or white; window protectors; heavy-duty, media-conveying duct; and DiCarb® or boron nozzles. Reclaimers can be upgraded with replaceable wear plates and urethane or Ultrawear linings.Automatic bag shaker frees operator for other tasks with bag-house dust collectors.Fully automatic photohelic controls purge dust from cartridge-type collectors without operator assistance.Rubber safety mats, placed around Pro-Finish cabinets, keep the immediate work area clean and reduce operator fatigue.
Specifications Reclaimer Ventilation Rate
400 ft³/min | 600 ft³/min
Specifications Standard Features
Rubber, cloth-lined glovesErgonomic glove rings with operator armrests90-watt spotlightsDust-off gunPneumatic foot-treadle control14â x 22â safety-glass windowGeneral purpose filterLeveling boltsOSHA door switch14-gauge construction3/16â perforated floor with 1000-lb capacitySure-Flo® media regulator (pressure systems)One-cubic-foot ASME pressure vessel (pressure systems)
Specifications Standard Number Of Doors
1
