Empire ProFormer Blast Cabinets
Empire ProFormer Blast Cabinets
SKU:EMP-d8074a
Empire ProFormer Blast Cabinets - Versatile, efficient, and rugged cabinets for production blasting tasks.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Empire ProFormer Blast Cabinets
$7,999.99
Quantity: 1
Claim Your Seller Account
Empire ProFormer Blast Cabinets
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

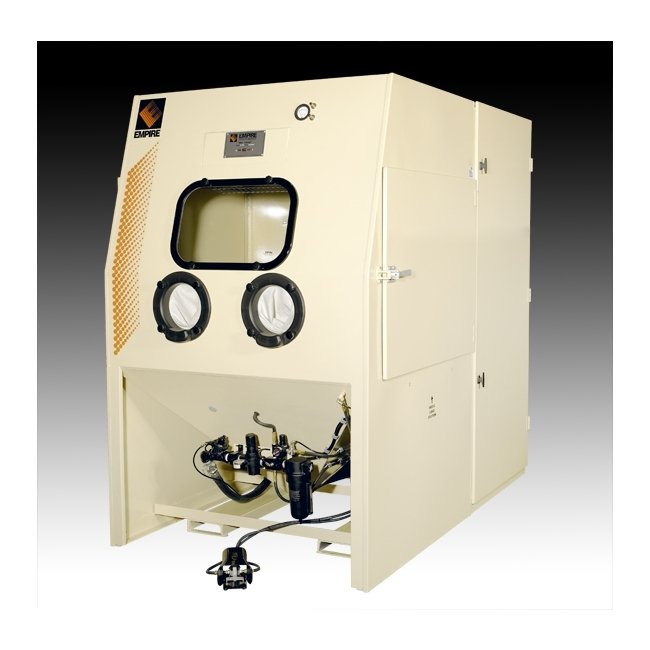

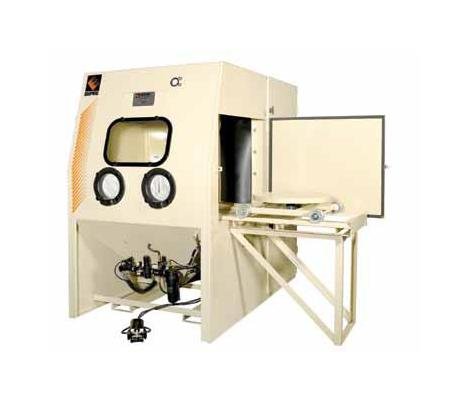

Empire ProFormer Blast Cabinets offer a consolidated solution with easy mobility and simplified connections. Available in two sizes, these cabinets feature a tunable media reclaimer, cartridge dust collector, and forklift slots. Designed for production blasting, they allow for versatile tasks with adjustable air pressure. With options for suction or pressure-blast systems, these rugged cabinets include features like rolling turntables for efficient processing. The dust collection system ensures easy maintenance with pulse cleaning and quick filter replacement, making them ideal for various finishing jobs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dust Collection Media Loading 0

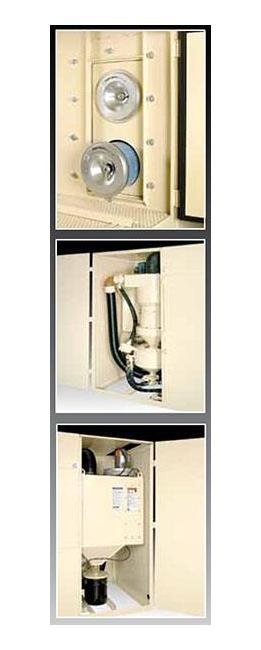

ProFormer⢠cabinets are equipped with cartridge dust collectors to facilitate a quick change of filtration surfaces. These two cartridges have a filtration area of 103 square feet each, providing a total of 206 square feet, and can be replaced in minutes through the cabinet door. As a result, loose dust falls into the cabinet rather than onto the work floor.The standard minihelic gauge shows pressure differential across the filters, prompting the operator to activate the pulse-cleaning mechanism. With the photohelic upgrade, pulse cleaning is initiated automatically when the system detects a pre-set pressure differential.Replenishing media is essentially fool-proof with ProFormer⢠cabinets. They are specially designed to prevent clogging when abrasives are loaded through the cabinet floor. Pressure (middle) and suction (bottom) configurations appear on the left.
Features Proformer Blast Cabinet Features
ProFormer Blast Cabinet Features
Other Features 0
Ergonomic glove rings with operator armrestsRubber, cloth-lined glovesTwo, 90-watt flood lightsDust-off gunPneumatic foot-treadle control14 x 22" safety-glass window with quick-change frameAir-pressure regulator and gaugeMedia regulatorLeveling bolts14-gauge construction on cabinet enclosure3/16" perforated floor with 1,000- pound capacity600 CFM ventilation
Specifications Ceramic Nozzle Pressure
3/16 in
Specifications Ceramic Nozzle Suction Airjet
5/16 to 5/32 in
Specifications Door Sizes Left And Right D X H
39 x 32 in
Specifications Inside Dimensions Cabinet D X W X H
46 x 52 x 48 in
Specifications Overall Dimensions D X W X H
82 x 54 x 82 in
Specifications Pipe String Pressure
1 in
Specifications Pipe String Suction
1/2 in
Specifications Pressure Vessel Asme Certified
1 ft³
Standard Factory Options 0
Three-phase and other electrical hookupsManual turntablesFixed-gun holdersRotating door-attached basketsExtended-wear components, including rubber curtains, window protectors, heavy-duty ducting, wear-resistant nozzles and reclaimer liningsAutomatic Sure-Flo® media regulatorMG-78 CR exhaust valveVibrating reclaimer screenMagnetic ferrous-particle extractorPhotohelic gauge/activator for automatic pulse cleaning of dust-collector cartridgesRubber safety mats
Warranty 0
BEST WARRANTY IN THE INDUSTRYThree-years limited on partsEmpire Air-Blast ProductsA complete range of cabinetsRobotic, turntable and in-line automationBlast rooms and blast boothsPortable blastersA full line of parts and accessoriesNEVER USE SILICA SAND IN ANY EMPIRE EQUIPMENTInformation subject to change without notice.
