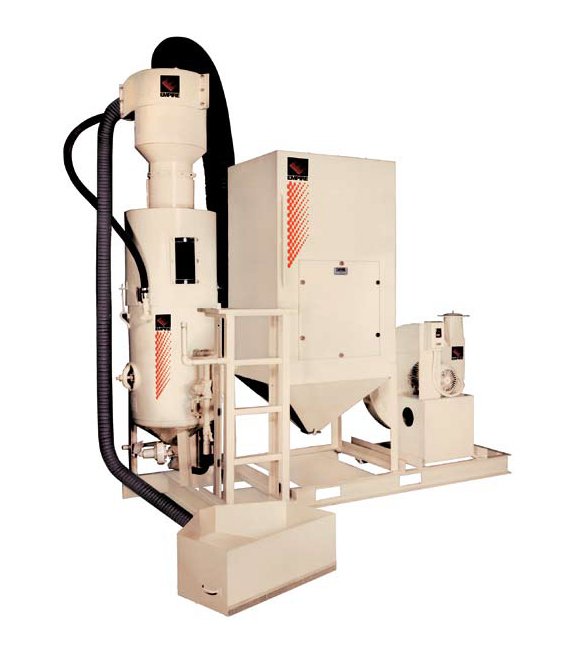

Empire PRS Blast & Recovery System
Empire PRS Blast & Recovery System
SKU:EMP-058a2c
Maximize efficiency and savings with Empire's PRS Blast & Recovery System, optimizing media use and improving blasting results.
Regular price
$14,999.00
Regular price
Sale price
$14,999.00
Unit price
per
Initiate Order
Empire PRS Blast & Recovery System
$14,999.00
Quantity: 1
Claim Your Seller Account
Empire PRS Blast & Recovery System
$14,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Empire PRS Blast & Recovery System revolutionizes industrial blasting with its efficient use of durable and recyclable media like aluminum oxide and steel grit. Designed to reduce operating costs and improve finishes, this system offers a significant return on investment through media savings. With features such as a Sure-Flo® Grit Valve and Ultrawear-lined reclaimer, it ensures consistent blasting results and increased productivity. Ideal for compliance with environmental regulations, the PRS is user-friendly, easy to operate, and built to last.
Product Specifications
Blast Apparatus S Models 0
5/16, silicone-carbide, venturi nozzle1"-ID x 50'-long, heavy-duty blast hose with couplingsSaf-Stop II⢠pneumatic blast-control handle (Patent No. 3,834,082) (OSHA)55' dual-line pneumatic control hose
Chassis 0
Heavy-channel iron, welded and reinforcedAccess ladder with hand holdsCut-outs for forklift transportHeavy-duty rubber casters on "D" and "SD" models
Dust Collectordcm 200 Hv High Vacuum 0
14-gauge, welded-steel, reinforced construction200 ft2 filtration with 30 cotton-sateen bags Large access door; raised clean-out doorPush-button, pneumatic cleaning
Features Prs Blast Recovery System Features
PRS Blast and Recovery Features
Media Conveying Duct 0
4" ID x 25' long-Heavy-duty construction
Media Reclaimer 0
Rugged, 12-gauge, welded-steel constructionUltrawear lining with externally replaceable wearplateTunable to various media sizes800 CFM ventilation
Media Recovery Hopper 0
11-gauge, welded-steel constructionAnti-clogging refuse screen30" wide x 30" deep x 12" high
Media Storage Hopper 0
11-gauge, welded-steel constructionViewing windowCapacity: 6.5 ft3 with PRS-6 modelsNominal diameter: 24" on PRS-6 models
Plan View Plan View
Plan View
Pressure Blower 0
10 hp, 3450 RPM, 800 CFM (at 42" static pressure H2O)440 - 480 V, 60 Hz, fused disconnect
Pressure Vessel S Models 0
SuperBlast 650 or 1050, ASME construction780 remote controls with automatic Sure-Flo® grit valve (Patent No. 4,518,145)1-1/4" piping Capacity: 6.5 ft³ with PRS-6 models; 10.5 ft³ with PRS-10 modelsMoisture separator/filter and choke feature
Prs Blast Recovery Systems Options Prs Blast Recovery Systems Op
Optional Media Recovery Trough
Safety 0
We support our portable blasters and blast rooms with a complete line of modern safety equipment that protects operators and complies with OSHA when properly applied and maintained. All devices affecting breathing-air quality should be inspected and serviced regularly, particularly when a multi-purpose compressor is used to supply breathing air.
Specifications Blast System
Includes 1050 SuperBlast pot
Specifications Model Number
PRS-10S
Sure Flo Grit Valve Sure Flo Grit Valve
Sure Flo Grit Valve
Warranty 0
BEST WARRANTY IN THE INDUSTRYThree years limited on parts and labor.OTHER EMPIRE PRODUCTSBlast RoomsPortable BlastersAutomated Blast SystemsBlast Cabinets - economy to customSilica sand is not to be used in any Empire blast equipment.Information subject to change without notice.
