Encapsulated 2-way Ball Valves - Alloy C-276, 1/4 MNPT x 1/4 Griplok, Cv 0.75
Encapsulated 2-way Ball Valves - Alloy C-276, 1/4 MNPT x 1/4 Griplok, Cv 0.75
SKU:VAL-80efd4
Top-quality Encapsulated 2-way Ball Valves - Alloy C-276, 1/4 MNPT x 1/4 Griplok, Cv 0.75
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Encapsulated 2-way Ball Valves - Alloy C-276, 1/4 MNPT x 1/4 Griplok, Cv 0.75
$99.99
Quantity: 1
Claim Your Seller Account
Encapsulated 2-way Ball Valves - Alloy C-276, 1/4 MNPT x 1/4 Griplok, Cv 0.75
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial processes with our EB Series Encapsulated 2-way Ball Valves made of Alloy C-276. This valve features a 1/4-18 MNPT connection on one end and a 1/4 inch Griplok Tube Fitting on the other, offering a Cv of 0.75. Designed with modified PTFE packing and a green nylon handle with stainless steel insert, it ensures superior performance in a wide temperature range from -65 to 300°F. With a working pressure of 3000 psig, this valve is a reliable choice for demanding applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

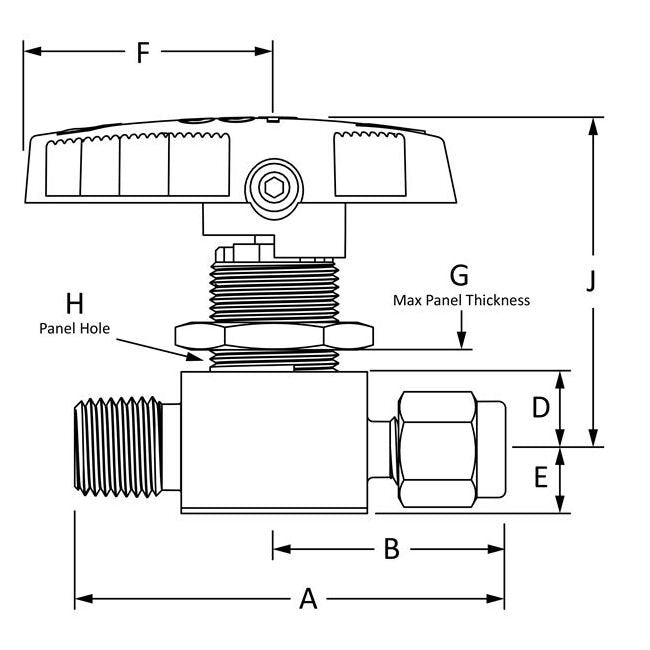

Dimensions A
2.20 in | 55.9 mm
Dimensions B
1.20 in | 30.5 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0.38 in | 9.7 mm
Dimensions F
1.43 in | 36.3 mm
Dimensions G
3/16 in | 4.8 mm
Dimensions H
25/32 in | 19.8 mm
Dimensions J
1.53 in | 38.8 mm
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Connection 1 Size
1/4-18
Specifications Connection 1 Type
MNPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Griplok Tube Fitting
Specifications Cv
0.75
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Shape
2-way
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Working Pressure
3000 psig | 206 bar
