Encapsulated 3-Way Ball Valve, Alloy 400 Female BSPT 1/4in (EB Series)
Encapsulated 3-Way Ball Valve, Alloy 400 Female BSPT 1/4in (EB Series)
SKU:VAL-e1806a
Enhanced EB Series 3-Way Ball Valve for precise fluid control. Alloy 400, 1/4in Female BSPT connections, Cv: 0.75, XQS flow pattern, -65 to 300 ºF temp range.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Encapsulated 3-Way Ball Valve, Alloy 400 Female BSPT 1/4in (EB Series)
$49.99
Quantity: 1
Claim Your Seller Account
Encapsulated 3-Way Ball Valve, Alloy 400 Female BSPT 1/4in (EB Series)
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional fluid control with our EB Series Encapsulated 3-Way Ball Valve. Crafted from Alloy 400, this valve features female BSPT connections of 1/4in, a Cv of 0.75, and modified PTFE packing, ensuring reliability in your applications. With a temperature range of -65 to 300 ºF, it meets rigorous industrial standards while offering a flow pattern of XQS for versatile functionality. The black nylon handle with a stainless steel insert provides durability and ease of operation, making it a top choice for critical operations.
Ready to Grow Without Cash Flow Constraints?

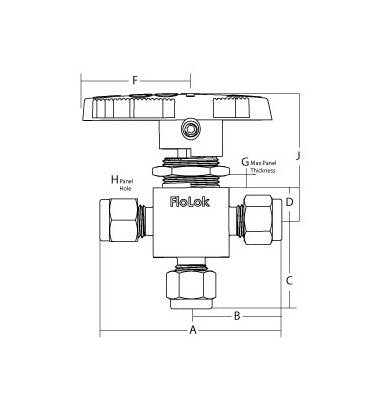

Product Specifications
Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Black
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-M
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
