Encapsulated 3-Way Ball Valves - Alloy 400, 1/4 in Female BSPT, XQS Flow Pattern
Encapsulated 3-Way Ball Valves - Alloy 400, 1/4 in Female BSPT, XQS Flow Pattern
SKU:VAL-5273fb
Enhance fluid control with our Alloy 400 3-way Ball Valves. Reliable, precise, and durable. Shop now!
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Encapsulated 3-Way Ball Valves - Alloy 400, 1/4 in Female BSPT, XQS Flow Pattern
$89.99
Quantity: 1
Claim Your Seller Account
Encapsulated 3-Way Ball Valves - Alloy 400, 1/4 in Female BSPT, XQS Flow Pattern
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid control system with our EB Series Encapsulated 3-Way Ball Valves. These valves feature Alloy 400 construction, 1/4 in Female BSPT connections, and a Cv of 0.75 for precise flow control. With a Packing made of Modified PTFE, these valves ensure reliable performance in temperatures ranging from -65 to 300°F. The orange Nylon handle with a Stainless Steel insert provides durability and easy operation. Trust in the quality of our valves to meet your industrial needs with efficiency and excellence.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

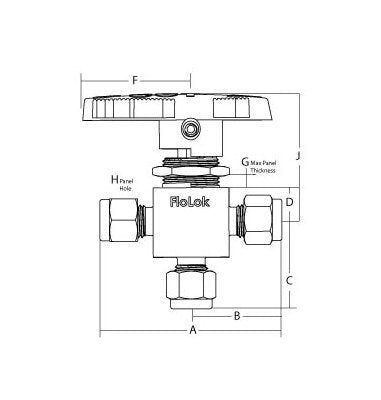

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy 400
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Orange
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-M
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
