Encapsulated 3-way Ball Valves - Alloy C-276, 1/4" Female BSPT, XQS Flow Pattern
Encapsulated 3-way Ball Valves - Alloy C-276, 1/4" Female BSPT, XQS Flow Pattern
SKU:VAL-14e9fe
Durable 3-way Ball Valves with Alloy C-276 construction, XQS Flow Pattern, and enhanced temperature resistance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Encapsulated 3-way Ball Valves - Alloy C-276, 1/4" Female BSPT, XQS Flow Pattern
$89.99
Quantity: 1
Claim Your Seller Account
Encapsulated 3-way Ball Valves - Alloy C-276, 1/4" Female BSPT, XQS Flow Pattern
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior performance with our EB Series Encapsulated 3-way Ball Valves featuring durable Alloy C-276 construction, 1/4" Female BSPT connections, and XQS Flow Pattern. These valves offer a Cv of 0.75 and operate seamlessly in temperatures ranging from -65 to 300°F. With modified PTFE packing and a green Nylon handle with Stainless Steel insert, they ensure reliable control and longevity for critical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

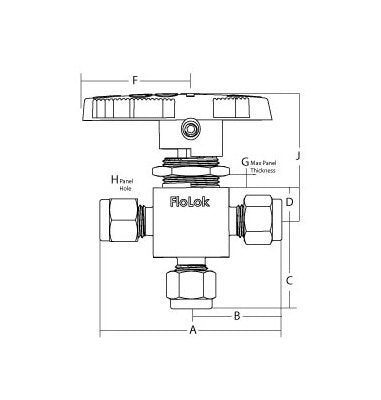

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Green
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
