Encapsulated 3-Way Brass Ball Valve Set

Encapsulated 3-Way Brass Ball Valve Set

VAL-f84c21

High-performance EB Series 3-way brass ball valves with modified PTFE packing and yellow nylon handle for industrial fluid control. Built for durability and reliable performance.

$59.99
$59.99
Sale

Initiate Order

Encapsulated 3-Way Brass Ball Valve Set

Encapsulated 3-Way Brass Ball Valve Set

$59.99

Quantity: 1

Claim Your Seller Account

Encapsulated 3-Way Brass Ball Valve Set

Encapsulated 3-Way Brass Ball Valve Set

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your industrial fluid control system with our EB Series 3-way ball valves. Crafted from durable brass, these valves feature a 3/8-18 FNPT connection type, Cv of 1.5, and modified PTFE packing for secure sealing. The yellow nylon handle with stainless steel insert ensures smooth operation in temperatures ranging from -65 to 150°F. With industry-standard dimensions and precision engineering, these valves offer reliable performance for diverse applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

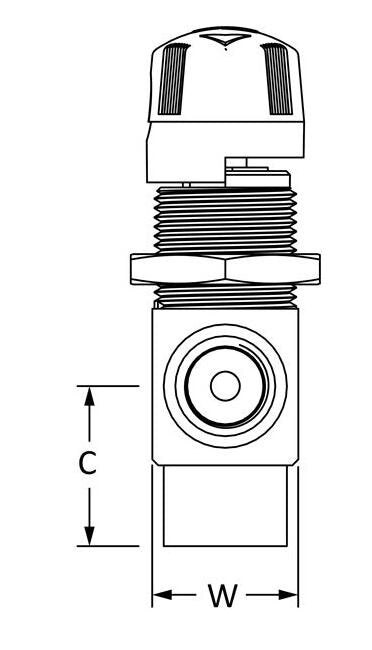

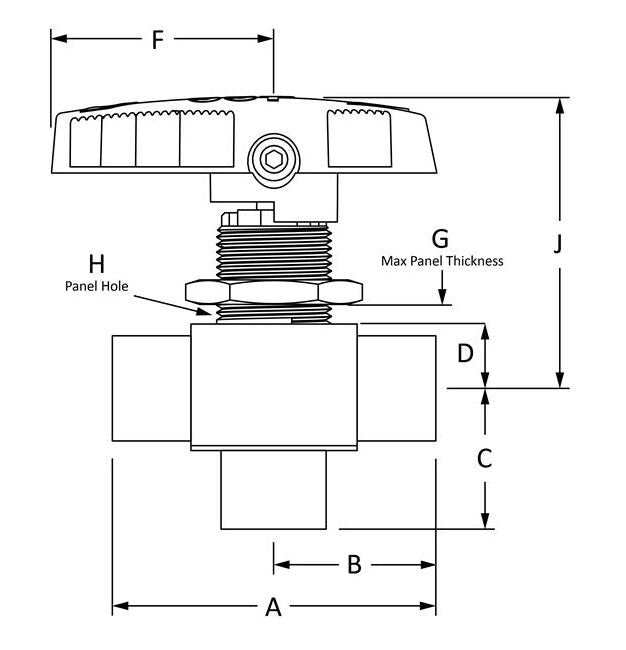

Dimensions A
2.5 in | 63.5 mm
Dimensions B
1.25 in | 31.8 mm
Dimensions C
1.25 in | 31.8 mm
Dimensions D
0.56 in | 14.2 mm
Dimensions E
0 in
Dimensions F
1.86 in | 47.2 mm
Dimensions G
0.375 in | 9.5 mm
Dimensions H
1.125 in | 28.6 mm
Dimensions J
2.1 in
Dimensions Panel Bore
1 1/8 in
Dimensions W
1.12 in
Specifications Actuation Type
.
Specifications Body Material
Brass
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
3/8-18
Specifications Connection 1 Type
FNPT
Specifications Connection 2 Size
3/8-18
Specifications Connection 2 Type
FNPT
Specifications Connection 3 Size
3/8 in
Specifications Connection 3 Type
FNPT
Specifications Cv
1.5
Specifications Flow Pattern
3-way
Specifications Handle Color
Yellow
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
.
Specifications Orifice
0.281 in | 7.1374 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
2
Specifications Ssp Pn
44GX6PF-B
Specifications Temperature
-65 to 150 ºF | -53 to 65 ºC
Specifications Type
Ball
