Encapsulated C-276 3-Way Ball Valves - EB Series
Encapsulated C-276 3-Way Ball Valves - EB Series
SKU:VAL-f9a45b
Durable Encapsulated C-276 3-way ball valves with XQS flow pattern, red Nylon handle, and locking hardware.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Encapsulated C-276 3-Way Ball Valves - EB Series
$89.99
Quantity: 1
Claim Your Seller Account
Encapsulated C-276 3-Way Ball Valves - EB Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Encapsulated C-276 3-Way Ball Valves from the EB Series are designed for optimal performance in industrial settings. Constructed with Alloy C-276, these valves feature Female BSPT connections, a Cv of 0.75, and Modified PTFE packing, ensuring durability and reliability. The flow pattern XQS and red Nylon handle with Stainless Steel insert offer ease of operation and maintenance. The additional locking hardware provides enhanced security, making these valves ideal for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

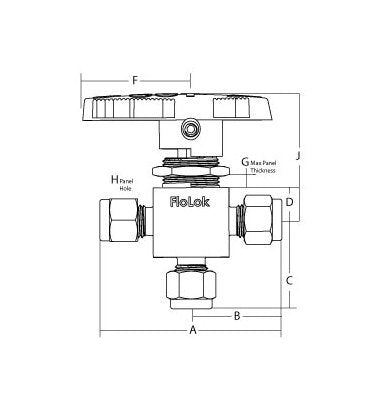

Dimensions A
2.06 in | 52.3 mm
Dimensions B
1.03 in | 26.2 mm
Dimensions C
1.03 in | 26.2 mm
Dimensions D
0.44 in | 11.2 mm
Dimensions E
0 in
Dimensions F
1.53 in | 38.9 mm
Dimensions G
0.188 in | 4.8 mm
Dimensions H
0.78 in | 19.8 mm
Dimensions J
1.53 in
Dimensions Panel Bore
25/32 in
Dimensions W
0.78 in
Specifications Actuation Type
.
Specifications Body Material
Alloy C-276
Specifications Brand Series
EB Series
Specifications Category
Encapsulated
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Female BSPT
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPT
Specifications Connection 3 Size
1/4 in
Specifications Connection 3 Type
Female BSPT
Specifications Cv
0.75
Specifications Flow Pattern
XQS
Specifications Handle Color
Red
Specifications Handle Type
Nylon - Stainless Steel Insert
Specifications Hardware
Locking Device
Specifications Orifice
0.187 in | 4.7498 mm
Specifications Packing Material
Modified PTFE
Specifications Production Category
4
Specifications Ssp Pn
43GX4FRT-HC
Specifications Temperature
-65 to 300 ºF | -53 to 148 ºC
Specifications Type
Ball
