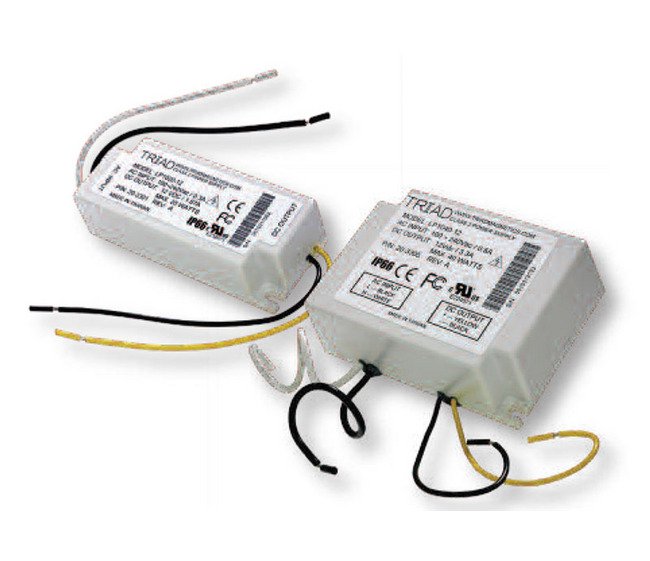

Encapsulated Switching Power Supply - TLD1020/40 Series 20-40W
Encapsulated Switching Power Supply - TLD1020/40 Series 20-40W
SKU:POW-9931f2
Reliable 20-40W encapsulated switching power supply for indoor & outdoor use with PFC and high efficiency. Meets EMC emissions & safety standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Encapsulated Switching Power Supply - TLD1020/40 Series 20-40W
$59.99
Quantity: 1
Claim Your Seller Account
Encapsulated Switching Power Supply - TLD1020/40 Series 20-40W
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The TLD1020/40 Series encapsulated switching power supplies provide reliable power outputs of 20-40 Watts with Power Factor Correction (PFC), ideal for indoor & outdoor IP66/NEMA 4 applications. With a constant current model type, input voltage range of 100 to 304V AC, and adjustable fixed output range, these power supplies offer high efficiency, precision, and protection features. Designed with compact dimensions and convection cooling, they ensure stable performance in varied environmental conditions. Compliant with EMC emissions, safety approvals like CE Mark, UL/cUL 1310, and UL48, these power supplies meet stringent industry standards for reliability and quality assurance.
Product Specifications
Connector Types Input Leads
5 in
Connector Types Input Wire
18 AWG
Connector Types Output Leads
5 in
Connector Types Output Wire
18 AWG
Emc Safety Specifications Class B Safety Approval
CE Mark (LVD) | UL/cUL 1310 | UL48
Emc Safety Specifications Emc Emissions
Compliant to 47CFR, Part 2, Part 15 and Cispr PUB, 22
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
5 to 95 % RH, non-condensing
Environmental Specifications Operating Temperature

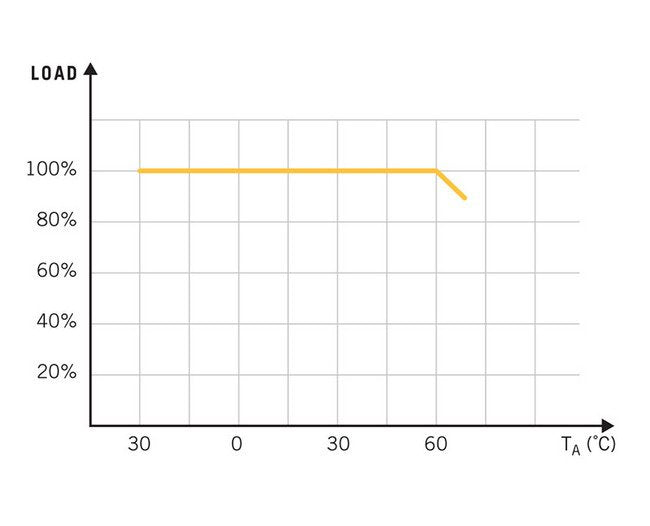

-30 to +60 Full Load, derate 1%/ºC from 60 to 70 max ºC
Environmental Specifications Storage Temperature
-40 to +85 ºC
Environmental Specifications Vibration
5 to 50 Hz, 2G 1 min/cycle, period of 60 min, each axis.

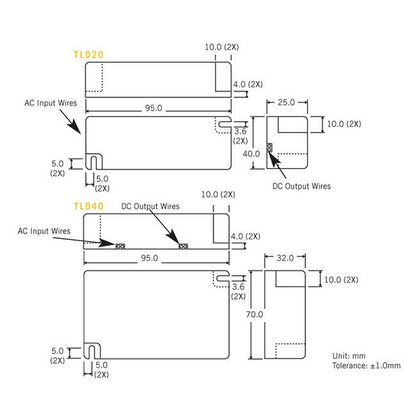

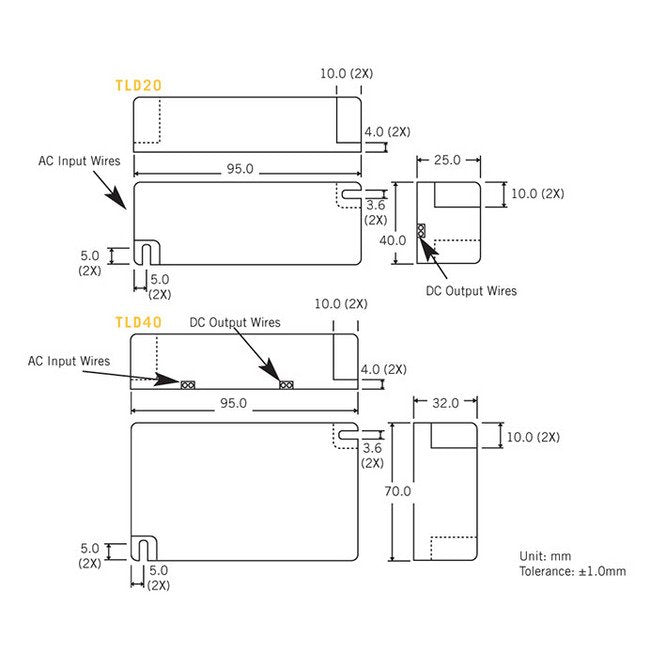

General Specifications Height H
0.97 in | 25 mm
General Specifications Length L
3.74 in | 95 mm
General Specifications Reliability Mtbf
>100k hrs. (Full Load & 25 ºC Operation)
General Specifications Warranty
3 years
General Specifications Weight
120 g
General Specifications Width W
1.57 in | 40 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
100 to 304 V
Input Characteristics Maximum Crest Factor Ipk
1.5
Input Characteristics Maximum Input Current At 115230 Vac
0.15 A | 0.3 A
Input Characteristics Maximum Inrush Current At 115 230 Vac Cold
5 A | 10 A
Input Characteristics Power Factor
0.9 at Full Load & 115 VAC
Output Characteristics Adjustable Output Range
Fixed
Output Characteristics Current Accuracy
±1% (when applicable)
Output Characteristics Line Regulation
±3.0 %
Output Characteristics Load Regulation
±3.0 %
Output Characteristics Minimum Hold Up Time At 120 Vac 80 Load
1/2 Cycle
Output Characteristics Over Current Protection Auto Recovery
120 %
Output Characteristics Over Voltage Protection Auto Recovery
120 %
Output Characteristics Ripple And Noise
±5 %
Output Characteristics Set Point Accuracy
±5 %
Specifications Current Dc
350 mA
Specifications Efficiency
84 %
Specifications Type
Constant Current Models
Specifications Voltage
12 to 24 V (DC)
