End Clamp for Series 225 I Beam - Flat Cable - Crane Control & Electrification
End Clamp for Series 225 I Beam - Flat Cable - Crane Control & Electrification
SKU:CRA-42bf85
Secure your Series 225 I Beam cable system with the durable End Clamp. Speed: 225 fpm, Load: 150 lb. Low carbon steel construction. Zinc plated for corrosion resistance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
End Clamp for Series 225 I Beam - Flat Cable - Crane Control & Electrification
$29.99
Quantity: 1
Claim Your Seller Account
End Clamp for Series 225 I Beam - Flat Cable - Crane Control & Electrification
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

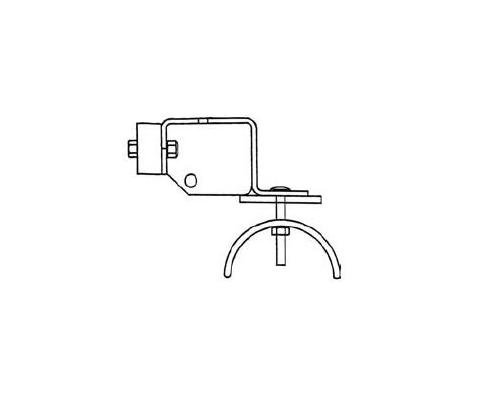

The End Clamp for Series 225 I Beam is a vital component for cable festoon systems in industrial settings. Made of low carbon steel, this end clamp ensures secure positioning at the end of the system on the I-Beam. With a speed capacity of 225 fpm, load support of 150 lb, and anti-lift rollers with hardened steel construction, this clamp guarantees durability and reliability. Compliant with industry standards for crane control systems, this end clamp is zinc plated for corrosion resistance, featuring a cable window width of 2.38 inches and a cable window height of 1.00 inch.
Product Specifications
Specifications Anti Lift Rollers
Hardened Steel Diameter 1.19 in
Specifications Body Type
Low carbon Steel
Specifications Cable Window Height
1.00 in
Specifications Cable Window Width
2.38 in
Specifications Finish
Zinc Plated with yellow Dichromate Seal
Specifications Hardware
Zinc Plated
Specifications Load
150 lb
Specifications Main Rollers
Hardened Steel Diameter 1.68 in
Specifications Saddle Diameter
3.4 in
Specifications Saddle Type
Low Carbon Steel
Specifications Speed
225 fpm
Specifications Weight
5.0 lb
