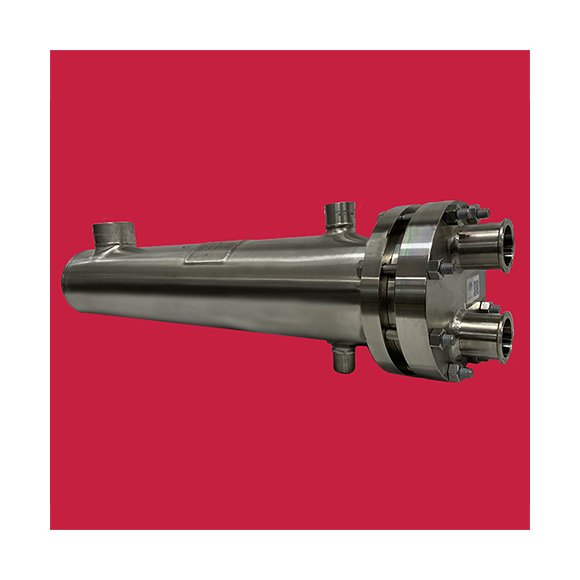

Enerquip 4" x 108" Shell and Tube Heat Exchanger

Name: Enerquip 4" x 108" Shell and Tube Heat Exchanger
Brand: Enerquip Thermal Solutions
SKU: SHE-63b82d
Price: 2599.99 USD
Availability: OutOfStock

SKU:SHE-63b82d

High-performance 4" x 108" Shell & Tube Heat Exchanger for chemical, HVAC, and pharmaceutical applications. Durable 316L/304L SS construction with sanitary finish.

$2,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Enerquip 4" x 108" Shell and Tube Heat Exchanger offers exceptional performance in various applications, including chemical heat exchanges, commercial HVAC systems, and pharmaceutical processes. Crafted from 316L SS for the product side and 304L SS for the utility side, this heat exchanger ensures durable and efficient heat transfer. With a 26 ft² surface area, two passes, and a process flow ranging from 10 to 50 gpm, it provides optimal heat exchange capabilities. The 1.5" TC connections and sanitary finish (40 Ra exterior) make it suitable for stringent hygiene requirements.

Product Specifications

Note

Sanitary Finish Product - 40 Ra exterior

Specifications Applications

Chemical Heat Exchangers | Commercial Grade Heating, Ventilation, and Air Conditioning (HVAC) | Pharmaceutical Heat Exchangers

Specifications Overall Length

117.75 in

Specifications Pass

Specifications Process Flow

10 to 50 gpm

Specifications Product Side Materials

316L SS Sanitary

Specifications Shell In Connection Size

2 in

Specifications Shell In Connection Type

National Pipe Thread (NPT)

Specifications Shell Out Connection Size

1 in

Specifications Shell Out Connection Type

National Pipe Thread (NPT)

Specifications Shell Size

4 in

Specifications Surface Area

26 ft²

Specifications Tube Length

108 in

Specifications Tube Side Connections Tc Size

1.5 in

Specifications Utility Side Materials

304L SS

Enerquip 4" x 108" Shell and Tube Heat Exchanger
