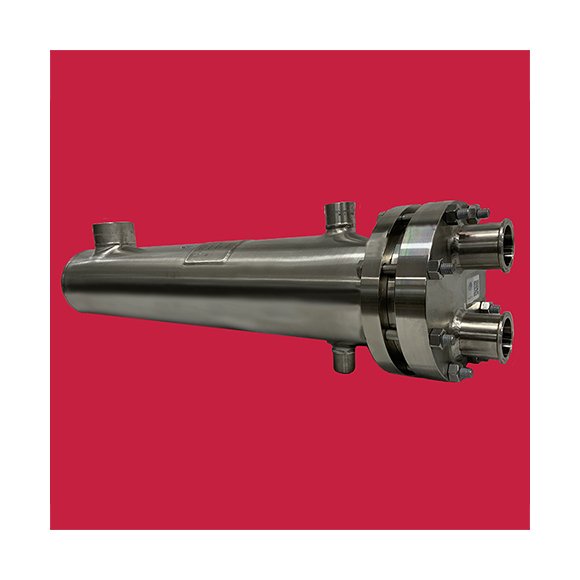

Enerquip 8" x 54" Shell and Tube Heat Exchanger with 3" TC Connections

Name: Enerquip 8" x 54" Shell and Tube Heat Exchanger with 3" TC Connections
Brand: Enerquip Thermal Solutions
SKU: SHE-0550e8
Price: 2499.99 USD
Availability: OutOfStock

SKU:SHE-0550e8

High-performance 8" x 54" Shell & Tube Heat Exchanger with 3" TC Connections, ideal for industrial applications.

$2,499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Enerquip 8" x 54" BEUB-3A-S Heat Exchanger is a robust solution designed for demanding industrial applications. Constructed from 316L/304L stainless steel, this heat exchanger offers a surface area of 40.1 ft², accommodating process flows ranging from 120 to 250 gpm. With 3" TC connections and compliant with 3A Dairy standards, it is suitable for chemical, HVAC, and pharmaceutical applications. Meet your heat exchange needs efficiently and reliably with this high-quality, stock option heat exchanger from Enerquip.

Product Specifications

Note

3A Dairy Product - 40 Ra exterior

Specifications Applications

Chemical Heat Exchangers | Commercial Grade Heating, Ventilation, and Air Conditioning (HVAC) | Pharmaceutical Heat Exchangers

Specifications Overall Length

69.38 in

Specifications Pass

Specifications Process Flow

120 to 250 gpm

Specifications Product Side Materials

316L SS 3A

Specifications Shell In Connection Size

4 in

Specifications Shell In Connection Type

National Pipe Standard (NPS)

Specifications Shell Out Connection Size

1.5 in

Specifications Shell Out Connection Type

National Pipe Thread (NPT)

Specifications Shell Size

8 in

Specifications Stock Or Custom

Stock

Specifications Surface Area

40.1 ft²

Specifications Tube Length

54 in

Specifications Tube Side Connections Tc Size

3 in

Specifications Utility Side Materials

304L SS
