Engineering Thermoplastic Battery Master Disconnect Switch
Engineering Thermoplastic Battery Master Disconnect Switch
SKU:CVP-0cde58
Reliable Engineering Thermoplastic Battery Disconnect Switch for dual battery systems in vehicles. Ensures efficient power management and backup starting power in emergencies.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Engineering Thermoplastic Battery Master Disconnect Switch
$49.99
Quantity: 1
Claim Your Seller Account
Engineering Thermoplastic Battery Master Disconnect Switch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

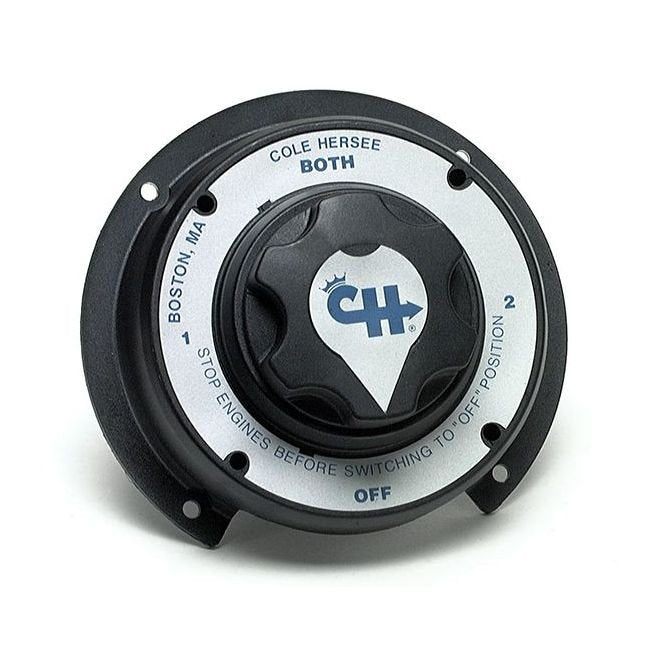

The Engineering Thermoplastic Battery Master Disconnect Switch is designed for vehicles requiring dual battery systems, commonly found in trucks, boats, RVs, and emergency vehicles. This switch offers four battery power options, allowing for efficient power management and backup starting power in emergencies. With a continuous current rating of 310A and DC voltage range of 6 to 36V, this switch ensures reliable power distribution and control. The switch's engineering thermoplastic case, copper stud terminals, and brass hex nut material guarantee durability and performance under demanding conditions.
Product Specifications
Accessories Accessories

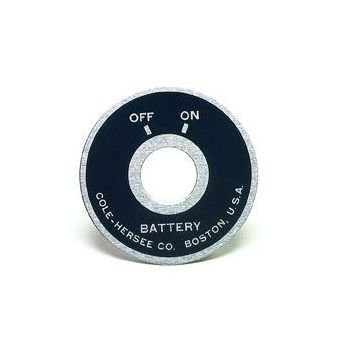

Item # - 82065Item Name - Faceplate for Master Disconnect SwitchesDescription - 82065 Faceplate without indexing hole for metal case battery disconnect switches without indexing pin. Polished aluminum with enamel finish 2-1/2 (63.5 mm) diameter. 82065-02 faceplate with indexing pin.
Additional Information Additional Information
Battery selector switches provide a positive battery disconnect which has many advantages: It gives a reliable shutdown of power during maintenance The version with the key protects against theft of the vehicle when unattended It helps protect against ele
Specifications Battery Power Options
1 Power On Both Batteries | 2 Power On Battery | Power Cut-Off at the Source | Power On Battery
Specifications Case Material
Engineering Thermoplastic
Specifications Continuous Current Rating
310 A
Specifications Direct Current Dc Voltage
6 to 36 V
Specifications Flange Diameter
6 in | 152.4 mm
Specifications Hex Nut Material
Brass
Specifications Installation Hole Size
3-5/16 in
Specifications Intermittent Current Rating
500 A
Specifications Number Of Stud Terminals
3
Specifications Overall Height
2-5/8 in | 66.7 mm
Specifications Stud Terminal Diameter
3/8 in | 9.5 mm
Specifications Stud Terminal Material
Copper
