Equal Non Return Needle Valve - O-ring Body, DIN Check Valve
Equal Non Return Needle Valve - O-ring Body, DIN Check Valve
SKU:VAL-4f93eb
High-quality Equal Non Return Needle Valve for precise hydraulic control, rated up to 350 bar pressure. DIN Check Valve.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - O-ring Body, DIN Check Valve
$59.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - O-ring Body, DIN Check Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve with O-ring Body is a versatile and durable valve designed for precise hydraulic applications. With Pressure options of Extra Light Duty, Heavy Duty, and Light Duty, it provides optimal flexibility for various operational requirements. Constructed from high-quality Carbon Steel, this valve ensures reliable performance under pressure up to 350 bar. The valve features a M - Tube Diameter of 10 mm and a W - Tube Diameter of 3/8 in, meeting institutional standards for efficiency and durability.

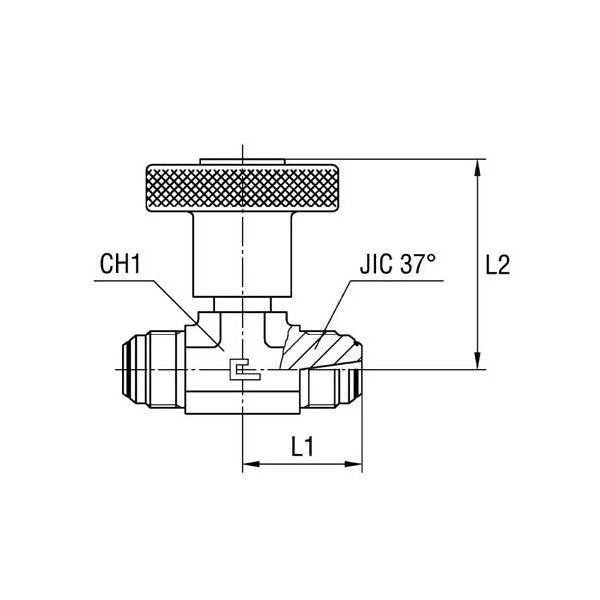

Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
27.0 mm
Specifications L2
50.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/8 in
Category 6
Equal Non Return Needle Valve
