Equal Non Return Needle Valve - O-ring Body, DIN Hydraulic Check Valves
Equal Non Return Needle Valve - O-ring Body, DIN Hydraulic Check Valves
SKU:VAL-cec7ea
Premium Equal Non Return Needle Valve for hydraulic systems, Heavy Duty pressure, Carbon Steel build
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - O-ring Body, DIN Hydraulic Check Valves
$39.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - O-ring Body, DIN Hydraulic Check Valves
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve - O-ring Body is designed for optimal performance in hydraulic systems, offering a pressure range from Extra Light Duty to Heavy Duty. With a nominal operating pressure of 350 bar and precise dimensions including M - Tube Diameter of 8 mm and W - Tube Diameter of 5/16 in, this valve ensures reliable flow control. Constructed with Carbon Steel, it meets standards for durability and functionality in diverse industrial applications.

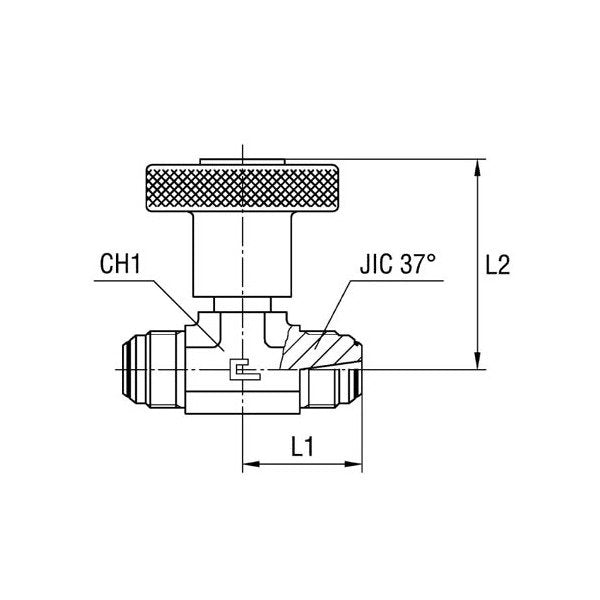

Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
24.0 mm
Specifications L2
50.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
Category 6
Equal Non Return Needle Valve
