Equal Non Return Needle Valve - O-ring Body for Hydraulic Systems
Equal Non Return Needle Valve - O-ring Body for Hydraulic Systems
SKU:FIT-cec7ea
Enhance hydraulic control with the Equal Non Return Needle Valve - O-ring Body. Pressure options for various duty levels, durable Carbon Steel construction, and precise engineering for optimal performance.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - O-ring Body for Hydraulic Systems
$39.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - O-ring Body for Hydraulic Systems
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve with an O-ring Body is designed for superior hydraulic control. Featuring Pressure options for Extra Light Duty, Heavy Duty, and Light Duty applications, with a Nominal Operating Pressure of 350 bar. Made of durable Carbon Steel, this valve ensures reliability and longevity in diverse operational conditions. Its precision engineering includes M - Tube Diameter of 8mm, W - Tube Diameter of 5/16in, and JIC 37° Thread of 1/2-20, providing seamless integration and enhanced performance for hydraulic systems.

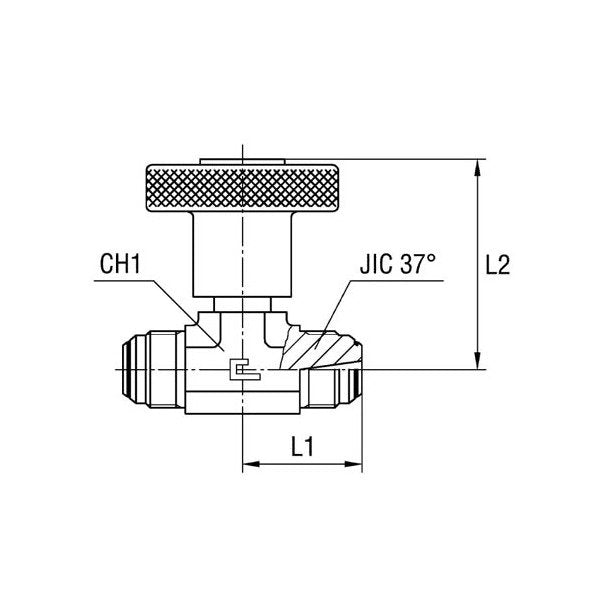

Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
24.0 mm
Specifications L2
50.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
