Equal Non Return Needle Valve - O-ring Body, Hydraulic Check Valve
Equal Non Return Needle Valve - O-ring Body, Hydraulic Check Valve
SKU:FIT-4f93eb
Durable Equal Non Return Needle Valve for hydraulic systems. Nominal pressure of 350 bar. Reliable carbon steel construction.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - O-ring Body, Hydraulic Check Valve
$49.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - O-ring Body, Hydraulic Check Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve with O-ring Body is a durable and efficient hydraulic check valve suitable for a wide range of pressures. With nominal operating pressure of 350 bar, this valve is versatile for various duty levels. Crafted from high-quality carbon steel, it ensures reliability and longevity in hydraulic systems. The 10 mm M-tube diameter and 3/8 inch W-tube diameter offer compatibility with standard hydraulic fittings, while the JIC 37° thread and 9/16-18 size provide secure connections.

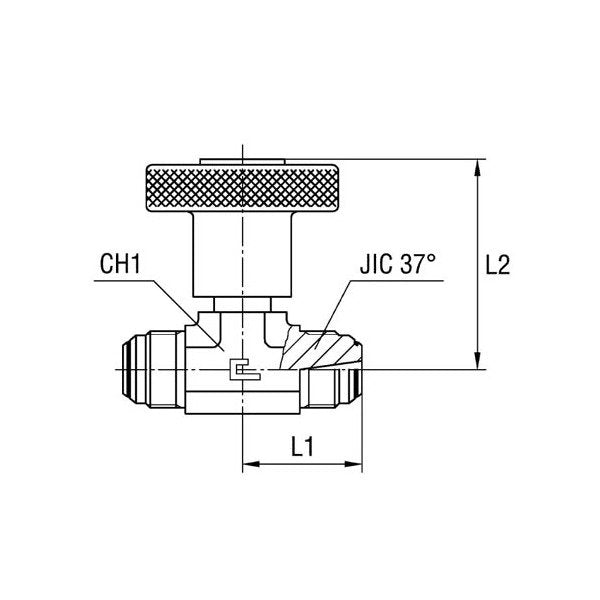

Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
27.0 mm
Specifications L2
50.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/8 in
