Equal Non Return Needle Valve - O-ring Body, Stainless Steel, 350 bar

Name: Equal Non Return Needle Valve - O-ring Body, Stainless Steel, 350 bar
Brand: World Wide Metric, Inc.
SKU: FIT-30f456
Price: 54.99 USD
Availability: OutOfStock

SKU:FIT-30f456

Durable Stainless Steel Needle Valve, 350 bar pressure, precise flow control

$54.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Equal Non Return Needle Valve with O-ring Body is designed for durability and precision in hydraulic systems. With various pressure options including Extra Light Duty, Heavy Duty, and Light Duty, this valve ensures reliable performance under different conditions. Constructed from high-grade Stainless Steel, it offers superior strength and resistance to corrosion. Measuring 8mm in M - Tube Diameter and 5/16 in W - Tube Diameter, this valve is suitable for a wide range of applications. Trusted for its exceptional quality and performance, this valve is a vital component in hydraulic systems requiring consistent and efficient flow control.

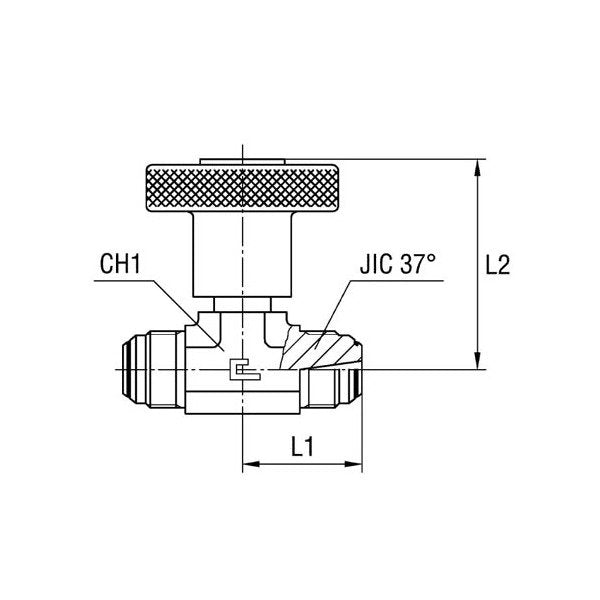

Product Specifications

Specifications Ch1

19.0 mm

Specifications Jic 37 Thread

1/2-20

Specifications L1

24.0 mm

Specifications L2

50.0 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

8 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

5/16 in

Equal Non Return Needle Valve - O-ring Body, Stainless Steel, 350 bar
