Equal Non Return Needle Valve O-Ring - Stainless Steel Hydraulic Check Valve
Equal Non Return Needle Valve O-Ring - Stainless Steel Hydraulic Check Valve
SKU:FIT-bec915
Premium stainless steel hydraulic check valve for precise flow control in industrial settings.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve O-Ring - Stainless Steel Hydraulic Check Valve
$59.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve O-Ring - Stainless Steel Hydraulic Check Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

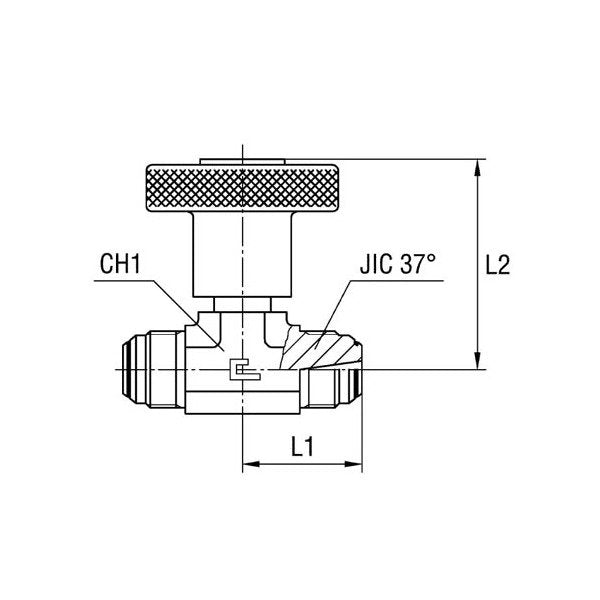

The Equal Non Return Needle Valve with O-ring Body is a high-performance hydraulic check valve designed to withstand extra light, heavy, and light-duty pressure conditions up to 350 bar. Crafted from durable stainless steel, this valve features a 12mm M-tube diameter, 1/2 inch W-tube diameter, and 3/4-16 JIC 37° thread for secure connections. With dimensions of L1: 32.0 mm, L2: 60 mm, CH1: 22 mm, it offers reliable flow control and leakage prevention, making it ideal for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Ch1
22 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
32.0 mm
Specifications L2
60 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
