Equal Non Return Needle Valve - Standard Body 8mm Stainless Steel
Equal Non Return Needle Valve - Standard Body 8mm Stainless Steel
SKU:VAL-97c913
Premium Stainless Steel Needle Valve - Extra Light to Heavy Duty, 350 bar, DIN Check Valve Compatible
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - Standard Body 8mm Stainless Steel
$49.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - Standard Body 8mm Stainless Steel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve - Standard Body is a high-quality hydraulic check valve designed for Extra Light Duty, Heavy Duty, and Light Duty applications. With a nominal operating pressure of 350 bar, this valve features a durable Stainless Steel construction, M-Tube Diameter of 8mm, and JIC 37° Thread of 1/2-20. Its precise engineering ensures reliable performance and long service life, making it an ideal choice for various industrial settings. This valve meets Federal/DoD procurement standards, FAR compliance factors, and industry-specific certifications, ensuring adherence to quality and regulatory requirements.

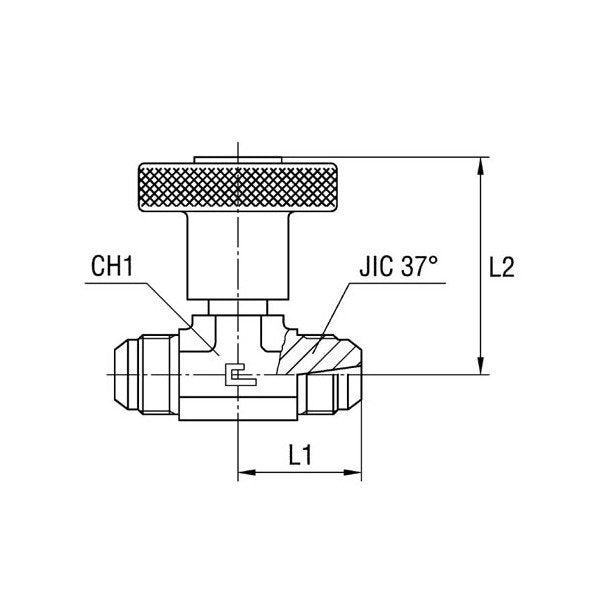

Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
24.0 mm
Specifications L2
50.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
Category 6
Equal Non Return Needle Valve
