Equal Non Return Needle Valve - Standard Body, DIN Hydraulic Check Valve
Equal Non Return Needle Valve - Standard Body, DIN Hydraulic Check Valve
SKU:VAL-3a5387
Durable stainless steel Equal Non Return Needle Valve for hydraulic systems, pressures up to 350 bar
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - Standard Body, DIN Hydraulic Check Valve
$39.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - Standard Body, DIN Hydraulic Check Valve
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

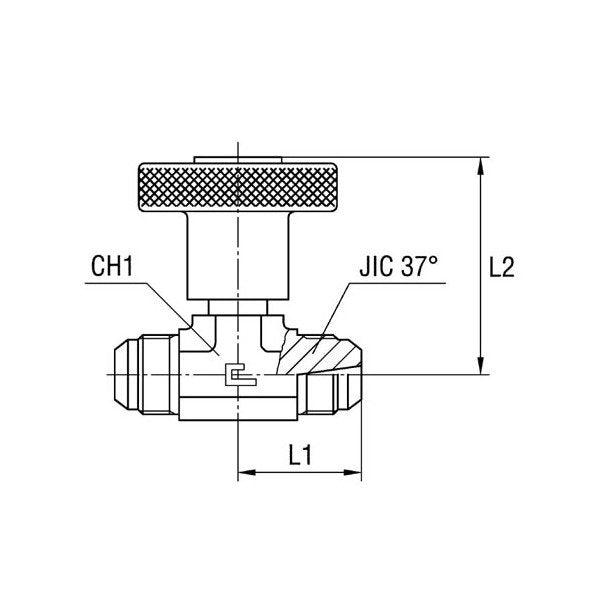

The Equal Non Return Needle Valve - Standard Body is a versatile hydraulic check valve designed to withstand pressures ranging from extra light duty to heavy duty up to 350 bar. Crafted from durable stainless steel, it features precise M - Tube Diameter of 6 mm and W - Tube Diameter of 1/4 in. With dimensions L1 of 23.0 mm and L2 of 50.0 mm, it ensures efficient flow control. The JIC 37° Thread of 7/16-20 provides secure sealing in various hydraulic systems, making it ideal for industrial applications.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
7/16-20
Specifications L1
23.0 mm
Specifications L2
50.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
6 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/4 in
Category 6
Equal Non Return Needle Valve
