Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
SKU:VAL-d93e38
Precision-engineered Equal Non Return Needle Valve ideal for hydraulic systems. Ensures reliable flow control in varying pressure conditions.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
$49.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve - Standard Body is engineered for superior performance in hydraulic systems. With pressure options ranging from Extra Light Duty to Heavy Duty, a Nominal Operating Pressure of 350 bar, and precision tube diameters of 6 mm and 1/4 in, this valve ensures reliable flow control. Crafted from durable Carbon Steel, it features a JIC 37° Thread for secure connections. This valve meets stringent industry standards for efficiency and durability, making it ideal for both consumer and institutional applications.

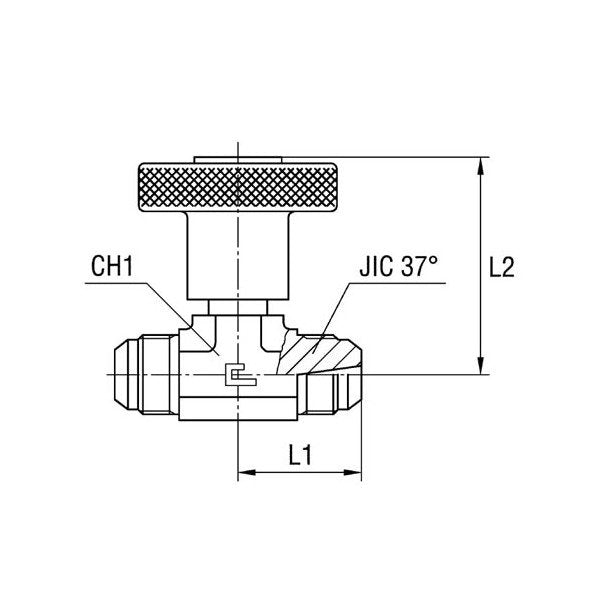

Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
7/16-20
Specifications L1
23.0 mm
Specifications L2
50.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
6 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/4 in
Category 6
Equal Non Return Needle Valve
