Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
SKU:VAL-06b2e0
Enhance hydraulic system performance with the Equal Non Return Needle Valve - Standard Body. Ideal for precise flow control under varying pressures.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
$39.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve - Standard Body is a versatile component designed for hydraulic systems, offering exceptional performance under various pressures. With options for Extra Light Duty, Heavy Duty, and Light Duty applications, this valve provides precise flow control and reliable operation. Crafted from durable Carbon Steel, it ensures long-lasting durability at a nominal operating pressure of 350 bar. Suitable for DIN hydraulic systems, this valve enhances system efficiency and safety.

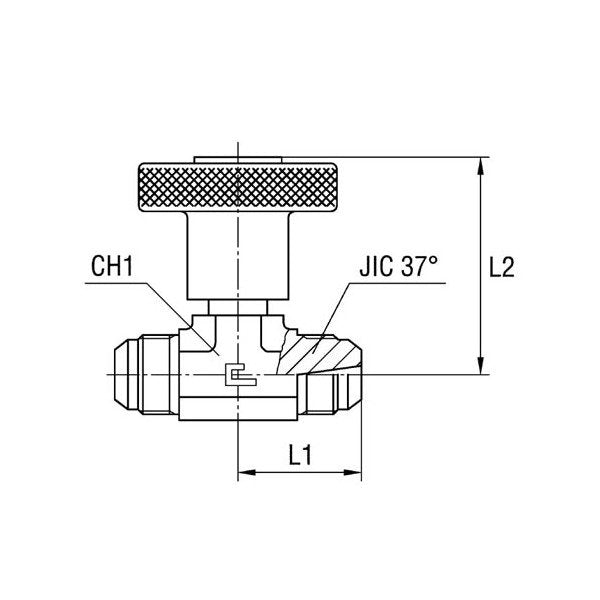

Product Specifications
Specifications Ch1
22 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
32.0 mm
Specifications L2
60 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
Category 6
Equal Non Return Needle Valve
