Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
SKU:FIT-06b2e0
Versatile Equal Non Return Needle Valve for hydraulic systems, ensures reliable non-return functionality under varying pressure loads.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
$29.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - Standard Body for Hydraulic Systems
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

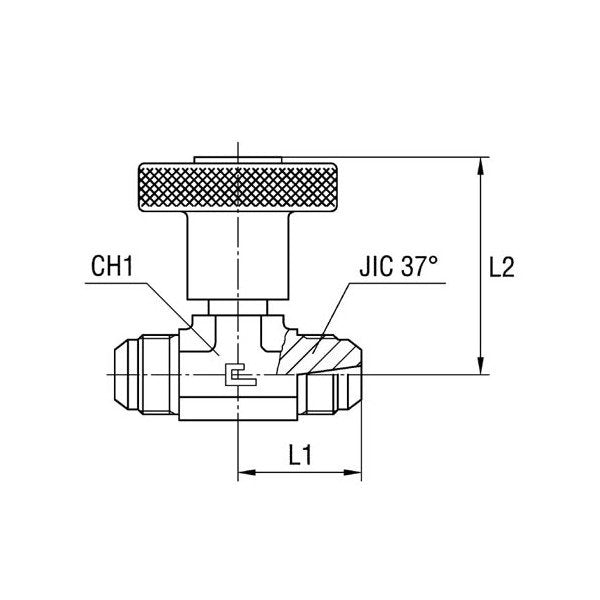

The Equal Non Return Needle Valve - Standard Body is a versatile hydraulic check valve designed for various pressure applications including Extra Light Duty, Heavy Duty, and Light Duty operations. With a nominal operating pressure of 350 bar, this valve features precise M and W tube diameters of 12mm and 1/2 inch respectively, ensuring efficient flow control. Crafted from durable carbon steel, it boasts dimensions of L1: 32.0mm, L2: 60mm, CH1: 22mm, and a JIC 37° Thread of 3/4-16. Ideal for hydraulic systems requiring reliable non-return functionality.
Product Specifications
Specifications Ch1
22 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
32.0 mm
Specifications L2
60 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
