Equal Non Return Needle Valve - Standard Body - Hydraulic Check Valve
Equal Non Return Needle Valve - Standard Body - Hydraulic Check Valve
SKU:VAL-ff2d0c
High-pressure Equal Non Return Needle Valve for hydraulic systems, suitable for various duty levels. Stainless steel construction with precise dimensions.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve - Standard Body - Hydraulic Check Valve
$69.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve - Standard Body - Hydraulic Check Valve
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve - Standard Body is a versatile valve suitable for a range of pressures from Extra Light Duty to Heavy Duty. With a nominal operating pressure of 350 bar, stainless steel construction, and precise tube diameters, it ensures reliable performance in hydraulic systems. This valve features a JIC 37° thread, meeting strict industry standards for durability and efficiency.

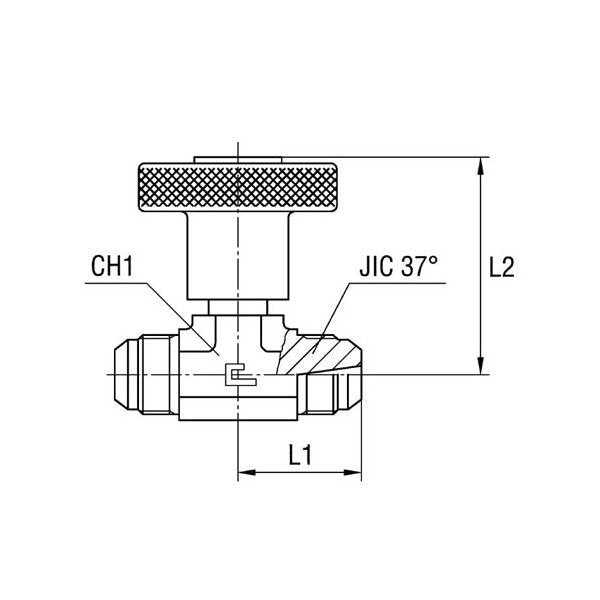

Product Specifications
Specifications Ch1
22 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
32.0 mm
Specifications L2
60 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
Category 6
Equal Non Return Needle Valve
