Equal Non Return Needle Valve - Standard Body, Stainless Steel, 350 bar

Name: Equal Non Return Needle Valve - Standard Body, Stainless Steel, 350 bar
Brand: World Wide Metric, Inc.
SKU: FIT-97c913
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-97c913

High-quality stainless steel needle valve for heavy-duty applications. 350 bar pressure, precise dimensions, assures reliable performance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

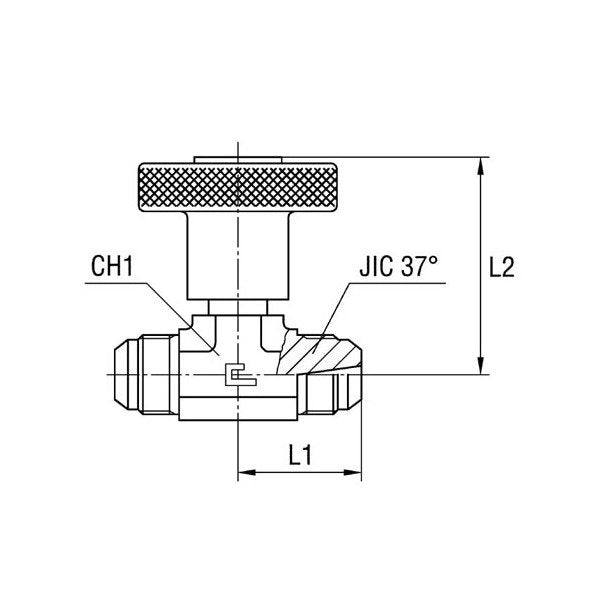

The Equal Non Return Needle Valve in Standard Body is a high-quality hydraulic check valve designed for heavy-duty applications. With a maximum operating pressure of 350 bar, this valve ensures reliable performance under extreme conditions. Made of durable stainless steel, it features precise M and W tube diameters, along with JIC 37° threading for secure connections. The compact design with specific dimensions (L1: 24.0 mm, L2: 50.0 mm, CH1: 19.0 mm) makes it ideal for various hydraulic systems. This valve guarantees exceptional flow control and is compliant with essential industry standards for institutional procurement.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Jic 37 Thread

1/2-20

Specifications L1

24.0 mm

Specifications L2

50.0 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

8 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

5/16 in

Equal Non Return Needle Valve - Standard Body, Stainless Steel, 350 bar
