Equal Non Return Needle Valve - Standard Body, Stainless Steel, 350 bar

Name: Equal Non Return Needle Valve - Standard Body, Stainless Steel, 350 bar
Brand: World Wide Metric, Inc.
SKU: FIT-3a5387
Price: 79.99 USD
Availability: OutOfStock

SKU:FIT-3a5387

Precision-engineered Equal Non Return Needle Valve for hydraulic systems, 350 bar pressure, durable stainless steel construction.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

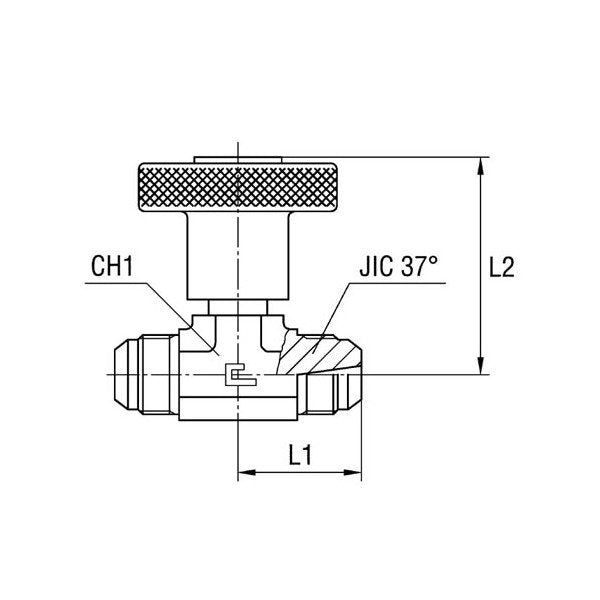

The Equal Non Return Needle Valve - Standard Body is a high-quality hydraulic check valve suitable for various duty applications. Designed with precision, it features pressure options ranging from Extra Light Duty to Heavy Duty, meeting the robust needs of industrial settings. With a nominal operating pressure of 350 bar and durable stainless steel construction, this valve ensures reliable performance and longevity. Its compact design, with tube diameters of 6mm (M) and 1/4 inch (W), along with precise measurements of L1: 23.0mm, L2: 50.0mm, and CH1: 19.0mm, makes it ideal for demanding hydraulic systems.

Product Specifications

Specifications Ch1

19.0 mm

Specifications Jic 37 Thread

7/16-20

Specifications L1

23.0 mm

Specifications L2

50.0 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

6 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

1/4 in

Equal Non Return Needle Valve - Standard Body, Stainless Steel, 350 bar
