Equal Non Return Needle Valve with O-ring Body
Equal Non Return Needle Valve with O-ring Body
SKU:FIT-ea1059
Durable Equal Non Return Needle Valve for hydraulic systems, pressure up to 350 bar, 6mm tube diameter, carbon steel construction.
Regular price
$44.99
Regular price
Sale price
$44.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve with O-ring Body
$44.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve with O-ring Body
$44.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve with O-ring Body is a versatile hydraulic check valve suitable for a wide range of applications. Crafted from durable carbon steel, this valve can withstand pressures up to 350 bar. With a precise M-tube diameter of 6mm and W-tube diameter of 1/4 in, it offers reliable performance and a compact design. Designed to meet stringent industry standards, this valve ensures superior performance and longevity in demanding environments.

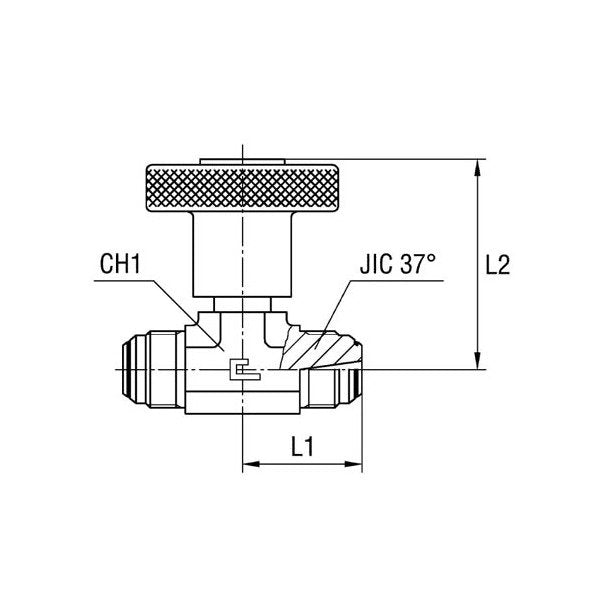

Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
7/16-20
Specifications L1
23.0 mm
Specifications L2
50.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
6 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/4 in
