Equal Non Return Needle Valve with O-ring Body 12mm - DIN Hydraulic Check Valve
Equal Non Return Needle Valve with O-ring Body 12mm - DIN Hydraulic Check Valve
SKU:VAL-f3a277
Highly durable Equal Non Return Needle Valve for hydraulic systems, offering precise pressure control and optimal performance. DIN standard compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve with O-ring Body 12mm - DIN Hydraulic Check Valve
$59.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve with O-ring Body 12mm - DIN Hydraulic Check Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve with O-ring Body is a versatile hydraulic check valve designed for a wide range of pressure duties, from Extra Light to Heavy Duty. With a nominal operating pressure of 350 bar, this valve features precise engineering using Carbon Steel material. Its DIN standard compliance ensures reliability and durability, making it ideal for industrial applications requiring secure non-return functionality.

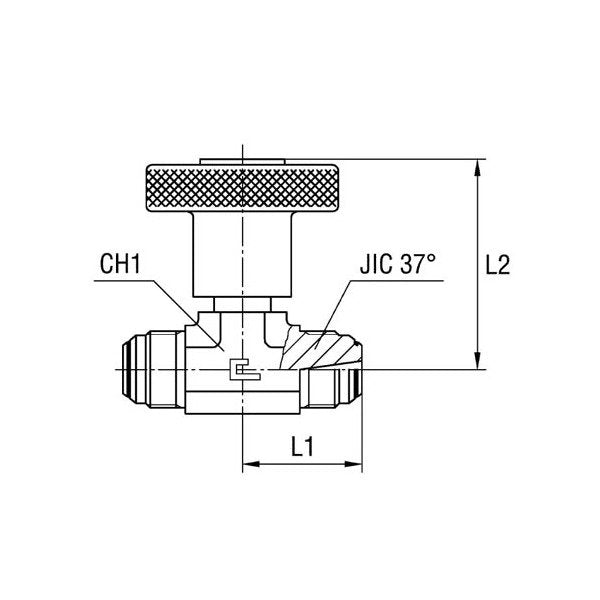

Product Specifications
Specifications Ch1
22 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
32.0 mm
Specifications L2
60 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
Category 6
Equal Non Return Needle Valve
