Equal Non Return Needle Valve with O-ring Body - DIN Hydraulic Check Valve
Equal Non Return Needle Valve with O-ring Body - DIN Hydraulic Check Valve
SKU:VAL-30f456
High-pressure DIN Equal Non Return Needle Valve with stainless steel body, 350 bar nominal operating pressure, suitable for hydraulic systems.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve with O-ring Body - DIN Hydraulic Check Valve
$69.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve with O-ring Body - DIN Hydraulic Check Valve
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

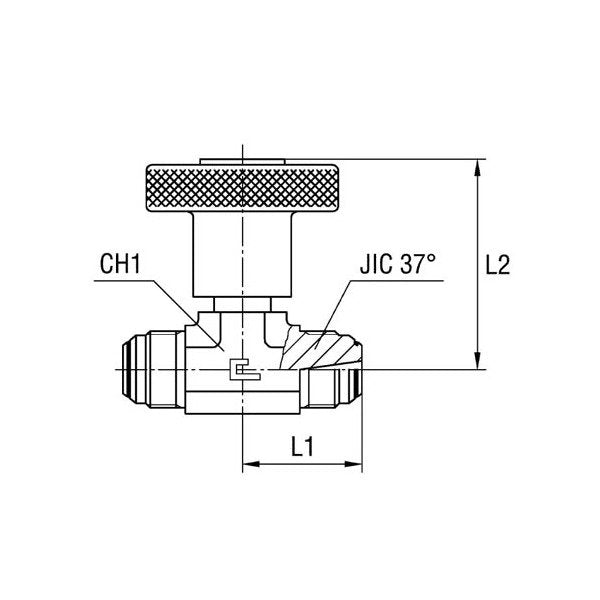

The Equal Non Return Needle Valve with O-ring Body is designed for high-pressure hydraulic applications, offering three different pressure duty options: Extra Light Duty, Heavy Duty, and Light Duty. With a nominal operating pressure of 350 bar, and precise M and W tube diameters of 8 mm and 5/16 in respectively, this stainless steel valve ensures reliable performance. The valve's compact design features precise dimensions including L1 (24.0 mm), L2 (50.0 mm), and CH1 (19.0 mm), along with a JIC 37° Thread of 1/2-20, making it suitable for a range of hydraulic systems. Compliant with industry standards, this valve is ideal for both consumer and institutional users in need of a dependable hydraulic check valve.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
24.0 mm
Specifications L2
50.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
Category 6
Equal Non Return Needle Valve
