Equal Non-Return Needle Valve with O-ring Body - Stainless Steel
Equal Non-Return Needle Valve with O-ring Body - Stainless Steel
SKU:FIT-e67786
Precision stainless steel needle valve for hydraulic systems with 350 bar nominal pressure. Durable and reliable design for various applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Equal Non-Return Needle Valve with O-ring Body - Stainless Steel
$29.99
Quantity: 1
Claim Your Seller Account
Equal Non-Return Needle Valve with O-ring Body - Stainless Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

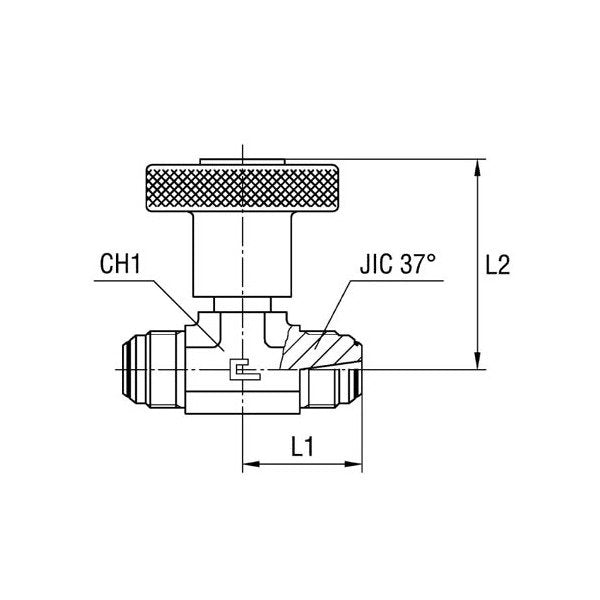

The Equal Non-Return Needle Valve with O-ring Body is designed for precision hydraulic applications, offering exceptional durability with its stainless steel construction. With a nominal operating pressure of 350 bar, and options for extra light duty, heavy duty, and light duty pressures, this valve ensures reliable performance in various settings. The valve's 6mm M-tube diameter and 1/4 inch W-tube diameter, along with precise dimensions like 23.0mm L1, 50.0mm L2, and 19.0mm CH1, make it versatile for different hydraulic systems. The JIC 37° thread and compliance with industry standards ensure compatibility and reliability in demanding environments.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Jic 37 Thread
7/16-20
Specifications L1
23.0 mm
Specifications L2
50.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
6 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/4 in
