Equal Non Return Needle Valve with O-Ring Seal - Heavy Duty Hydraulic Check Valve
Equal Non Return Needle Valve with O-Ring Seal - Heavy Duty Hydraulic Check Valve
SKU:FIT-f3a277
Durable Heavy-Duty Hydraulic Check Valve with 350 bar Pressure Rating, Ideal for Industrial Use
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Equal Non Return Needle Valve with O-Ring Seal - Heavy Duty Hydraulic Check Valve
$49.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Needle Valve with O-Ring Seal - Heavy Duty Hydraulic Check Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Needle Valve with O-Ring Seal is a robust hydraulic check valve designed for heavy-duty applications. With a nominal operating pressure of 350 bar, this valve is suitable for ensuring reliable flow control in high-pressure hydraulic systems. Constructed from durable carbon steel, it offers exceptional strength and resistance to corrosion. The valve features precise M and W tube diameters of 12mm and 1/2 inch respectively, along with JIC 37° thread for secure connections. Ideal for industrial settings requiring extra light to heavy-duty pressure handling.

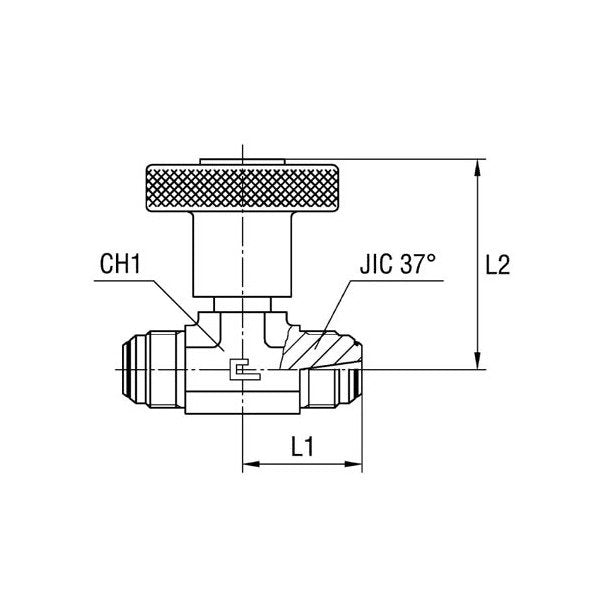

Product Specifications
Specifications Ch1
22 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
32.0 mm
Specifications L2
60 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
