Equal Non Return Valve - DIN Standard Body
Equal Non Return Valve - DIN Standard Body
SKU:VAL-8ef6fb
High-quality Equal Non Return Valve for hydraulic systems, pressure range up to 350 bar, durable carbon steel construction.
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
Equal Non Return Valve - DIN Standard Body
$54.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - DIN Standard Body
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

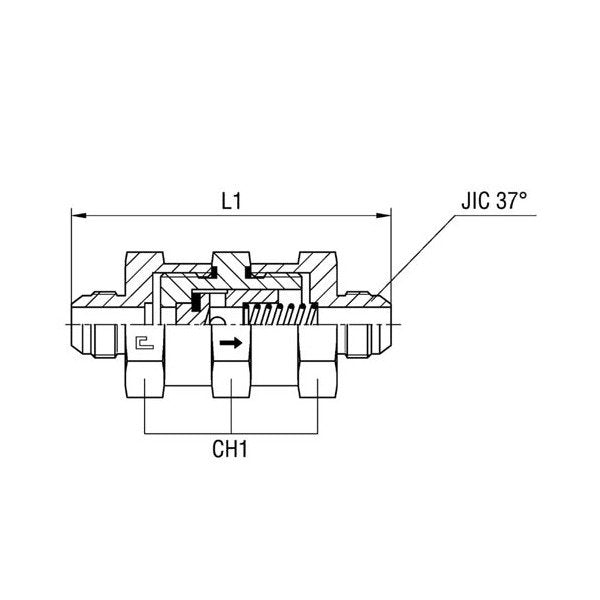

The Equal Non Return Valve - DIN Standard Body is designed for seamless flow control in hydraulic systems. With a nominal operating pressure of 350 bar, this durable valve is available in various pressure levels for different applications. Crafted from high-quality carbon steel, it ensures reliability and longevity. The 12mm tube diameter and 1/2 inch W tube diameter make it versatile for installation. The JIC 37° thread and 3/4-16 diameter pass ensure secure connections, while the compact design with dimensions L1: 87.4mm and CH1: 32mm enhances ease of use.
Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
87.4 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
Category 6
Equal Non Return Valve
