Equal Non Return Valve - Heavy Duty - Stainless Steel - 30mm
Equal Non Return Valve - Heavy Duty - Stainless Steel - 30mm
SKU:VAL-25e039
Premium Equal Non Return Valve - Heavy Duty Stainless Steel - 30mm - Ensures up to 240 bar pressure control
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Equal Non Return Valve - Heavy Duty - Stainless Steel - 30mm
$149.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Heavy Duty - Stainless Steel - 30mm
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - Standard Body is designed to meet the demands of heavy-duty hydraulic systems, providing reliable pressure control up to 240 bar. Constructed with high-quality stainless steel, this valve ensures long-lasting performance and corrosion resistance. With a tube diameter of 30mm, JIC 37° threaded connections, and a pass diameter of 25.5mm, it offers precision and durability for various hydraulic applications.
Product Specifications

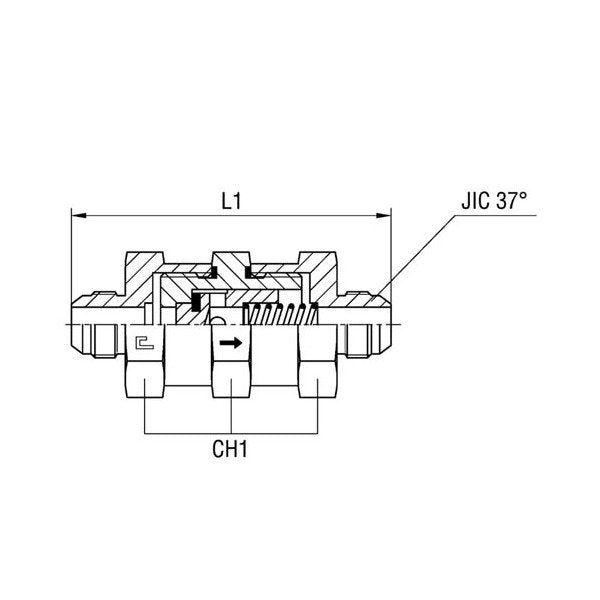

Specifications Ch1
70 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
132.6 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/4 in
Category 6
Equal Non Return Valve
