Equal Non Return Valve - O-ring Body DIN Hydraulic Check Valve
Equal Non Return Valve - O-ring Body DIN Hydraulic Check Valve
SKU:VAL-acdec7
Versatile Equal Non Return Valve for hydraulic systems, DIN standard compliant
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Equal Non Return Valve - O-ring Body DIN Hydraulic Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - O-ring Body DIN Hydraulic Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - O-ring Body is a versatile hydraulic check valve designed for extra light, heavy, and light-duty applications. With a nominal operating pressure of 240 bar, this valve features a M-Tube Diameter of 30mm or 32mm and a W-Tube Diameter of 1 1/4 in. Constructed from durable carbon steel, it ensures reliable performance and longevity in diverse hydraulic systems. Compliant with DIN standards, this valve meets the stringent requirements of government and institutional procurement.

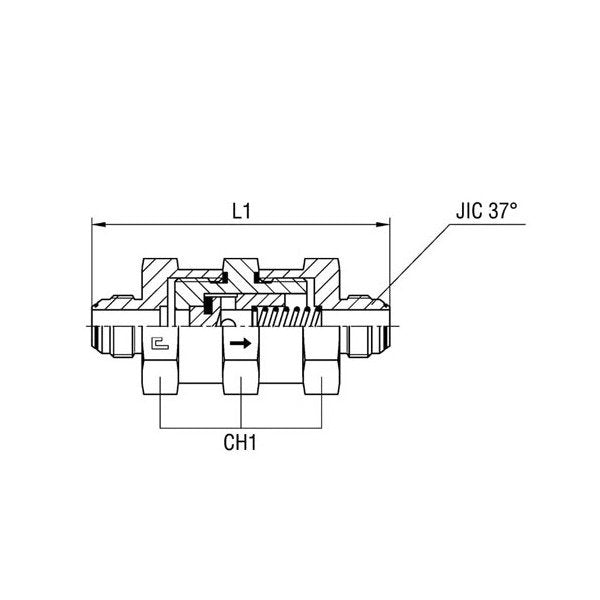

Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
132.6 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/4 in
Category 6
Equal Non Return Valve
