Equal Non Return Valve - O-ring Body with JIC 37¬ Thread
Equal Non Return Valve - O-ring Body with JIC 37¬ Thread
SKU:VAL-f5790c
High-pressure Equal Non Return Valve with O-ring Body for hydraulic systems. Durable Carbon Steel construction. Ideal for DIN Check Valve setups.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Equal Non Return Valve - O-ring Body with JIC 37¬ Thread
$79.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - O-ring Body with JIC 37¬ Thread
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve with O-ring Body is designed to meet the diverse pressure requirements of Extra Light Duty, Heavy Duty, and Light Duty applications. Operating at a nominal pressure of 290 bar, this valve features a sturdy Carbon Steel construction ensuring durability. With Tube Diameters of 25 mm (M) and 1 in (W), and dimensions meeting industry standards, it provides reliable hydraulic control. Suitable for DIN Check Valve systems, the valve includes a JIC 37° Thread (1 5/16-12) for secure installation.

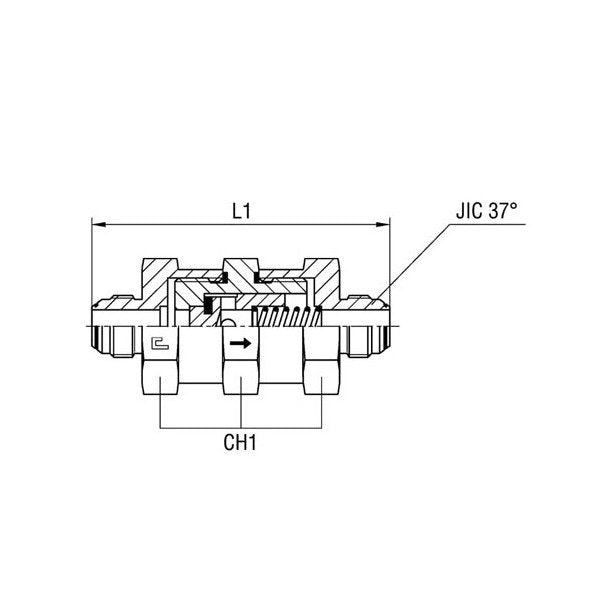

Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
18 mm
Specifications Jic 37 Thread
1 5/16-12
Specifications L1
112.2 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
25 mm
Specifications Nominal Operating Pressure
290 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 in
Category 6
Equal Non Return Valve
