Equal Non Return Valve - O-ring Body with JIC 37° Thread
Equal Non Return Valve - O-ring Body with JIC 37° Thread
SKU:FIT-72d2be
Premium Equal Non Return Valve with O-ring Body for hydraulic systems. Nominal pressure 350 bar, carbon steel construction, 12mm M-tube diameter.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Equal Non Return Valve - O-ring Body with JIC 37° Thread
$45.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - O-ring Body with JIC 37° Thread
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

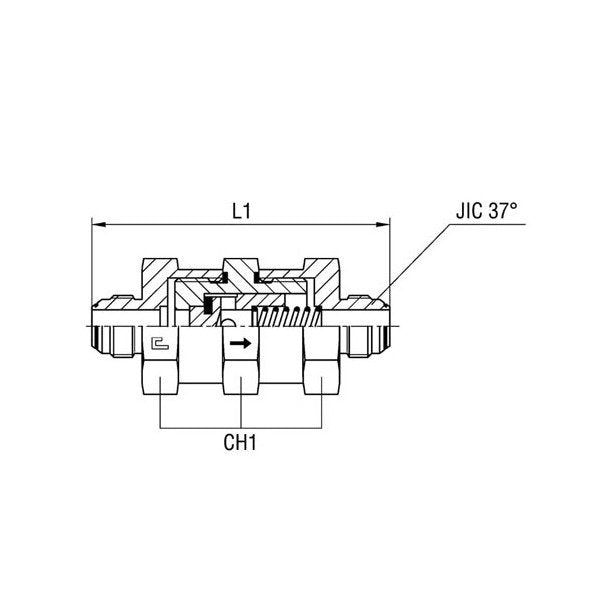

The Equal Non Return Valve with O-ring Body and JIC 37° Thread is a versatile hydraulic check valve suitable for a wide range of applications. With a nominal operating pressure of 350 bar, this valve is designed to deliver reliable performance in extra light duty to heavy-duty settings. Constructed from durable carbon steel, it features precise dimensions including a 12 mm M-tube diameter, 1/2 inch W-tube diameter, and an 8 mm diameter pass. The 3/4-16 JIC 37° Thread ensures secure connections. This valve combines efficiency, durability, and precise engineering to meet the rigorous demands of institutional procurement standards.
Product Specifications
Specifications Ch1
32 mm
Specifications Diameter Pass
8 mm
Specifications Jic 37 Thread
3/4-16
Specifications L1
87.4 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
12 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/2 in
