Equal Non Return Valve - Standard Body 350bar Stainless Steel
Equal Non Return Valve - Standard Body 350bar Stainless Steel
SKU:FIT-09d55e
High-quality Equal Non Return Valve for hydraulic systems, 350 bar pressure, stainless steel construction.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body 350bar Stainless Steel
$45.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body 350bar Stainless Steel
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - Standard Body is a reliable hydraulic check valve suitable for a wide range of applications. With a nominal operating pressure of 350 bar and constructed from durable stainless steel, this valve ensures secure and leak-free performance. The valve features various tube diameter options, including 18mm and 20mm, and meets stringent industry standards for quality and reliability.
Product Specifications

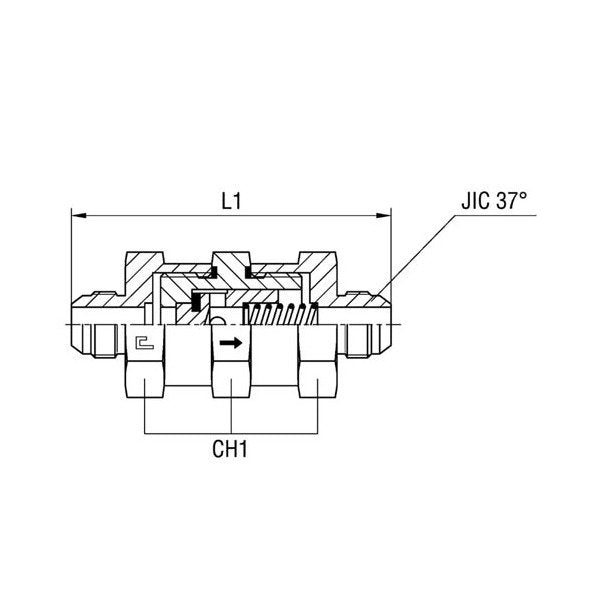

Specifications Ch1
50 mm
Specifications Diameter Pass
14.5 mm
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
109.8 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/4 in
