Equal Non Return Valve - Standard Body 350bar Stainless Steel DIN Hydraulic Check Valve

Name: Equal Non Return Valve - Standard Body 350bar Stainless Steel DIN Hydraulic Check Valve
Brand: World Wide Metric, Inc.
SKU: VAL-09d55e
Price: 49.99 USD
Availability: OutOfStock

SKU:VAL-09d55e

Reliable Equal Non Return Valve for hydraulic systems, 350bar pressure, Stainless Steel construction.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Equal Non Return Valve - Standard Body is designed to withstand a range of pressures from Extra Light Duty to Heavy Duty, making it ideal for various hydraulic systems. With a Nominal Operating Pressure of 350 bar and durable Stainless Steel construction, this valve ensures reliable performance and longevity. Its precise dimensions and JIC 37° Thread connection provide a secure fit, while meeting industry standards for quality and efficiency.

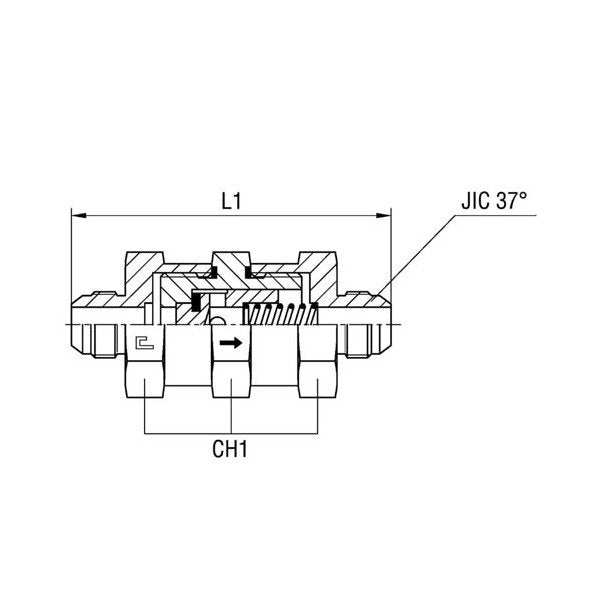

Product Specifications

Specifications Ch1

50 mm

Specifications Diameter Pass

14.5 mm

Specifications Jic 37 Thread

1 1/16-12

Specifications L1

109.8 mm

Specifications Material

Stainless Steel

Specifications M Tube Diameter

18 mm | 20 mm

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

Specifications W Tube Diameter

3/4 in
