Equal Non Return Valve - Standard Body, DIN Hydraulic Check Valve
Equal Non Return Valve - Standard Body, DIN Hydraulic Check Valve
SKU:VAL-9aad3e
Versatile Equal Non Return Valve - Standard Body for hydraulic systems, Carbon Steel construction, 350 bar pressure, precise fit for 10mm M-tubes & 3/8-inch W-tubes.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body, DIN Hydraulic Check Valve
$29.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body, DIN Hydraulic Check Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - Standard Body is a versatile solution for hydraulic systems, with pressure options for Extra Light Duty, Heavy Duty, and Light Duty applications. Operating at a nominal pressure of 350 bar, this valve features a sturdy Carbon Steel construction and precise dimensions to fit 10mm M-tubes and 3/8-inch W-tubes. With a 4mm diameter pass and JIC 37° thread of 9/16-18, it ensures reliable flow control and prevents backflow efficiently.
Product Specifications

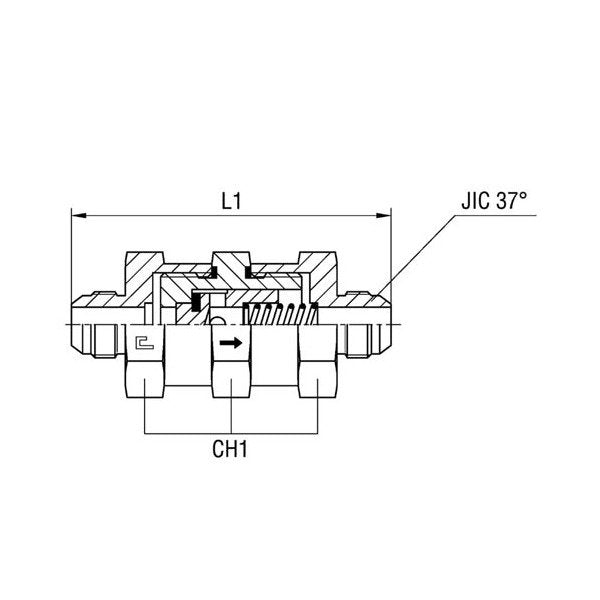

Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
76.2 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/8 in
Category 6
Equal Non Return Valve
