Equal Non Return Valve - Standard Body for Hydraulic Systems
Equal Non Return Valve - Standard Body for Hydraulic Systems
SKU:VAL-9dcd80
Durable stainless steel Equal Non Return Valve with 400 bar nominal operating pressure for precise fluid control in hydraulic systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body for Hydraulic Systems
$39.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body for Hydraulic Systems
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

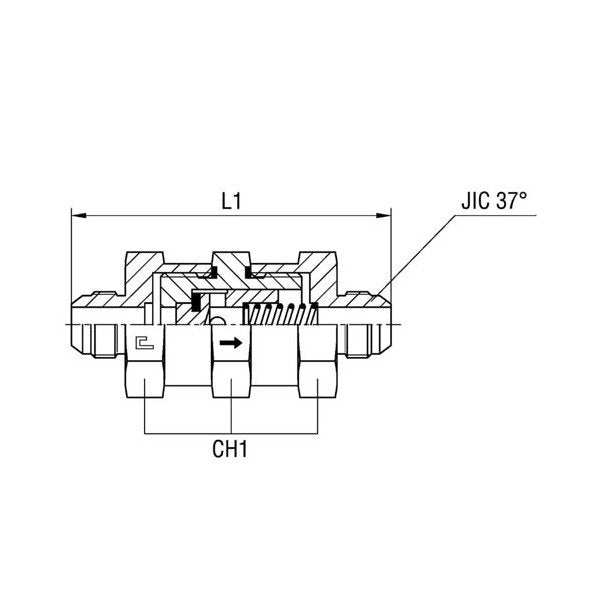

The Equal Non Return Valve - Standard Body is a top-performing hydraulic check valve designed for heavy-duty applications. With a nominal operating pressure of 400 bar and constructed from durable stainless steel, this valve ensures reliable performance and precise flow control. It features an M tube diameter of 8mm and W tube diameter of 5/16 in, making it suitable for a wide range of hydraulic systems. The JIC 37° thread and compact design of 76.0mm length and 19.0mm CH1 provide easy installation and maintenance. Trust this valve for efficient fluid handling in various industrial settings.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
76.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
Category 6
Equal Non Return Valve
