Equal Non Return Valve - Standard Body for Hydraulic Systems
Equal Non Return Valve - Standard Body for Hydraulic Systems
SKU:VAL-bb279d
Ensure efficient flow control with the Equal Non Return Valve - Standard Body for hydraulic systems. Prevent backflow effectively with high-quality stainless steel construction.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body for Hydraulic Systems
$49.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body for Hydraulic Systems
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - Standard Body is a reliable solution for hydraulic systems, offering exceptional quality and performance. With a nominal operating pressure of 400 bar, this valve ensures efficient flow control and prevents backflow, meeting the demands of heavy-duty applications. Crafted from durable stainless steel, it provides long-term reliability and resistance to corrosion, making it a valuable component in industrial settings. This valve, with a tube diameter of 6 mm and 1/4 in, features a JIC 37° thread and complies with industry standards for precision and reliability.

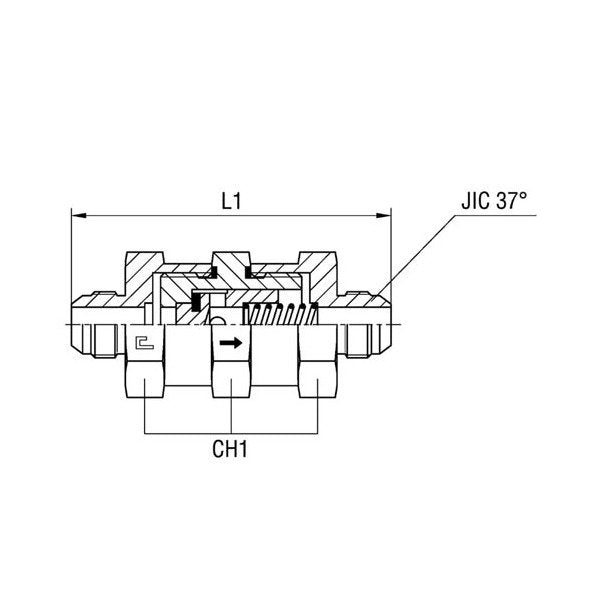

Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
2.8 mm
Specifications Jic 37 Thread
7/16-20
Specifications L1
76.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
6 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1/4 in
Category 6
Equal Non Return Valve
