Equal Non Return Valve - Standard Body for Hydraulic Systems
Equal Non Return Valve - Standard Body for Hydraulic Systems
SKU:FIT-9dcd80
Prevent backflow and ensure hydraulic system efficiency with the Equal Non Return Valve - Standard Body. Stainless steel construction, multiple pressure options, and easy installation.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body for Hydraulic Systems
$29.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body for Hydraulic Systems
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - Standard Body is designed to ensure fluid flow in one direction, preventing backflow and maintaining system efficiency. With options for Extra Light Duty, Heavy Duty, and Light Duty applications, its stainless steel construction offers durability and reliability. Featuring a 400 bar Nominal Operating Pressure, 8mm M Tube Diameter, and 5/16in W Tube Diameter, this valve is suitable for a wide range of hydraulic systems. The JIC 37° Thread and 1/2-20 Diameter Pass. provide easy installation and secure connections, making it a versatile choice for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?

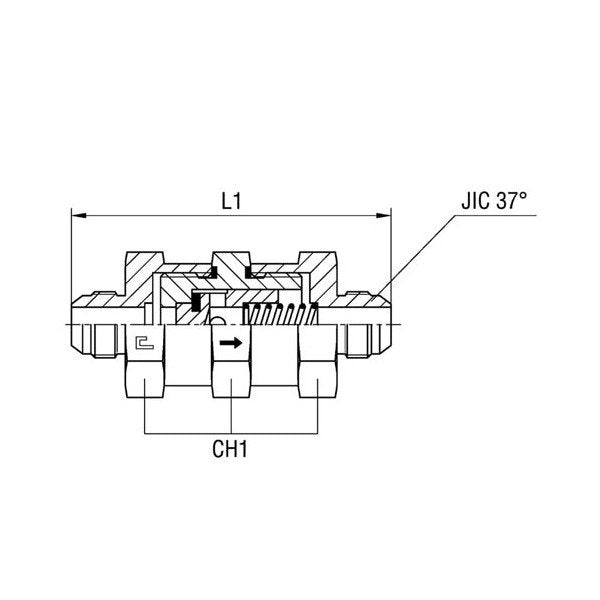

Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
76.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
