Equal Non Return Valve - Standard Body, Hydraulic Check Valve
Equal Non Return Valve - Standard Body, Hydraulic Check Valve
SKU:VAL-221419
Enhance hydraulic system performance with the Equal Non Return Valve - Standard Body, built for reliability and precision.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body, Hydraulic Check Valve
$29.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body, Hydraulic Check Valve
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

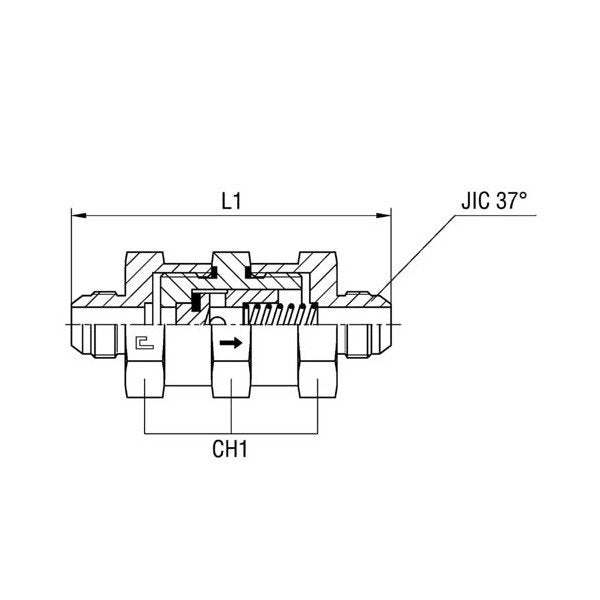

The Equal Non Return Valve - Standard Body is a versatile valve designed for a wide range of applications in hydraulic systems. With pressure options ranging from Extra Light Duty to Heavy Duty, a nominal operating pressure of 400 bar, and a sturdy Carbon Steel construction, this valve ensures reliable performance under varying conditions. Its precise design features an M - 8 mm and W - 5/16 in tube diameter, L1 - 76.0 mm length, CH1 - 19.0 mm, a 4 mm diameter pass, and JIC 37° Thread: 1/2-20, offering seamless integration and efficient functionality.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
76.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
Category 6
Equal Non Return Valve
