Equal Non Return Valve - Standard Body - Hydraulic Check Valve
Equal Non Return Valve - Standard Body - Hydraulic Check Valve
SKU:VAL-d0dff8
High-performance Equal Non Return Valve - Ideal for hydraulic systems. Stainless Steel construction, 350 bar pressure.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body - Hydraulic Check Valve
$45.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body - Hydraulic Check Valve
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - Standard Body is a versatile hydraulic check valve suitable for Extra Light Duty, Heavy Duty, and Light Duty applications. With a Nominal Operating Pressure of 350 bar, this valve features a Stainless Steel construction, M-Tube Diameter of 10mm, and W-Tube Diameter of 3/8 inch. The valve's JIC 37° Thread and Diameter Pass. of 4mm ensure secure connections and optimal flow control, making it an ideal choice for industrial and institutional hydraulic systems.

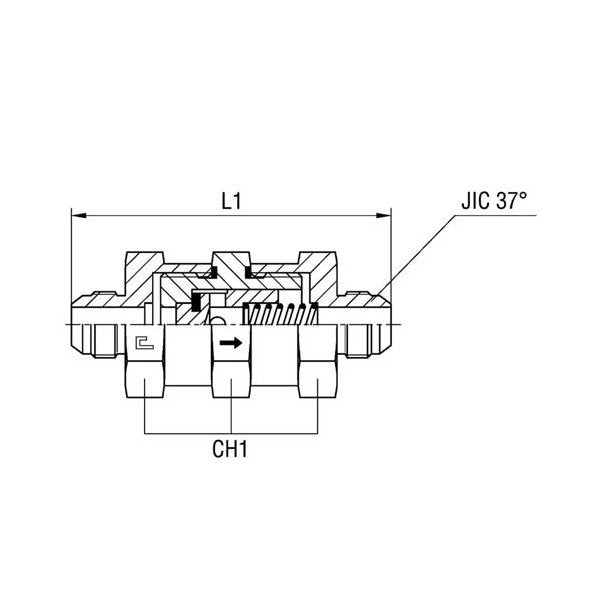

Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
9/16-18
Specifications L1
76.2 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
10 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/8 in
Category 6
Equal Non Return Valve
