Equal Non Return Valve - Standard Body, Hydraulic Check Valve
Equal Non Return Valve - Standard Body, Hydraulic Check Valve
SKU:VAL-08e391
Ensure one-way flow in hydraulic systems with the durable Equal Non Return Valve - Standard Body, suitable for heavy-duty applications up to 240 bar.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body, Hydraulic Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body, Hydraulic Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

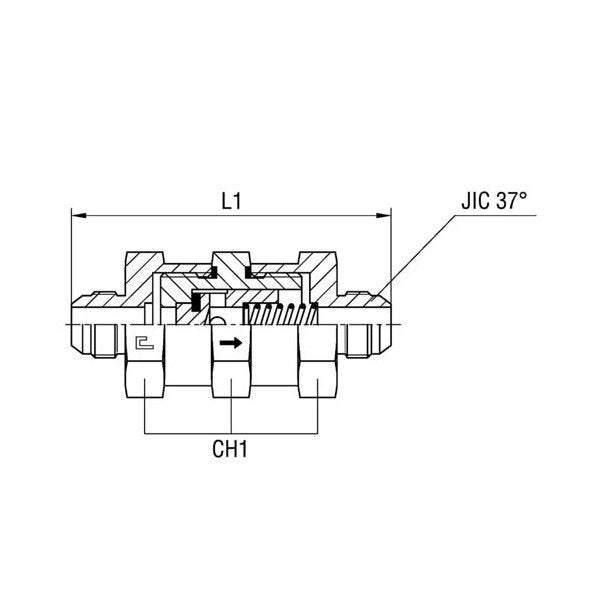

The Equal Non Return Valve - Standard Body is a reliable hydraulic check valve designed to ensure fluid flows in one direction, preventing backflow and system damage. With a pressure range suitable for heavy-duty applications up to 240 bar, this valve offers precise control and durability. Crafted from sturdy carbon steel, it features M and W tube diameters, JIC 37° threads, and a precise pass diameter of 25.5 mm. Ideal for industrial settings requiring secure fluid regulation and adherence to stringent quality standards.
Product Specifications
Specifications Ch1
70 mm
Specifications Diameter Pass
25.5 mm
Specifications Jic 37 Thread
1 5/8-12
Specifications L1
132.6 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
30 mm | 32 mm
Specifications Nominal Operating Pressure
240 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
1 1/4 in
Category 6
Equal Non Return Valve
