Equal Non Return Valve - Standard Body, Hydraulic Check Valve
Equal Non Return Valve - Standard Body, Hydraulic Check Valve
SKU:FIT-221419
Reliable Equal Non Return Valve for hydraulic systems. Durable carbon steel construction. Optimal performance under varying pressures.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body, Hydraulic Check Valve
$24.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body, Hydraulic Check Valve
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

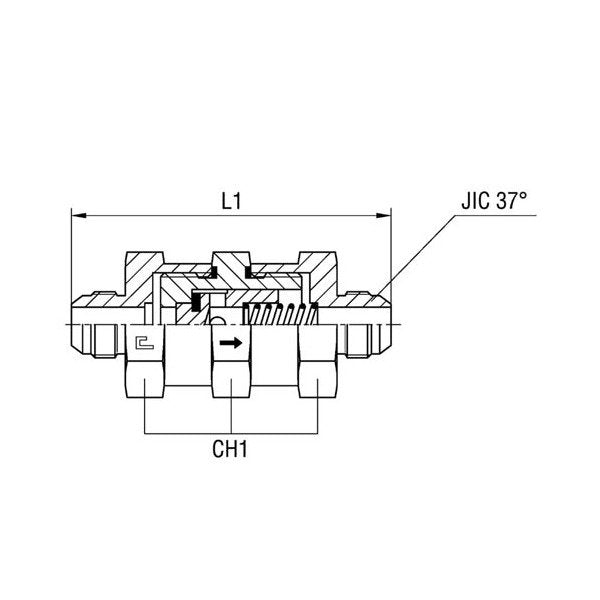

The Equal Non Return Valve - Standard Body is a versatile hydraulic fitting designed to provide reliable non-return prevention in various operating conditions. With pressure options ranging from Extra Light Duty to Heavy Duty, and a nominal operating pressure of 400 bar, this valve ensures optimal performance in hydraulic systems. Constructed from durable carbon steel, it features precise tube diameters, JIC 37° threading, and a compact design for easy installation and maintenance. Compliant with industry standards, this valve is ideal for both consumer and institutional use.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Diameter Pass
4 mm
Specifications Jic 37 Thread
1/2-20
Specifications L1
76.0 mm
Specifications Material
Carbon Steel
Specifications M Tube Diameter
8 mm
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/16 in
