Equal Non Return Valve - Standard Body, Stainless Steel, JIC 37° Thread 7/8-14
Equal Non Return Valve - Standard Body, Stainless Steel, JIC 37° Thread 7/8-14
SKU:FIT-4969db
Durable stainless steel Equal Non Return Valve for hydraulic systems, with pressure range up to 350 bar.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Equal Non Return Valve - Standard Body, Stainless Steel, JIC 37° Thread 7/8-14
$29.99
Quantity: 1
Claim Your Seller Account
Equal Non Return Valve - Standard Body, Stainless Steel, JIC 37° Thread 7/8-14
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Equal Non Return Valve - Standard Body is a durable solution for hydraulic systems, offering a pressure range from Extra Light Duty to Heavy Duty. With a Nominal Operating Pressure of 350 bar and a variety of tube diameters to choose from, including 14mm, 15mm, and 16mm, this valve ensures reliable performance under varying conditions. Crafted from high-quality stainless steel and featuring a JIC 37° Thread 7/8-14, this valve is built to withstand harsh environments and deliver consistent functionality.

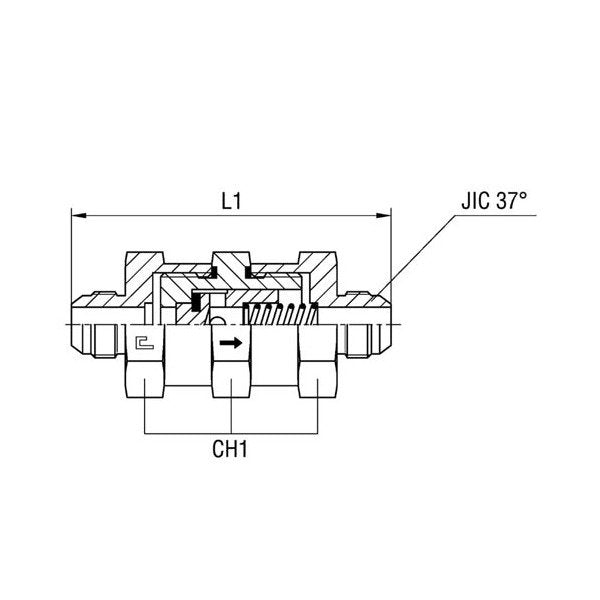

Product Specifications
Specifications Ch1
41 mm
Specifications Diameter Pass
11 mm
Specifications Jic 37 Thread
7/8-14
Specifications L1
95.6 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
14 mm | 15 mm | 16 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
5/8 in
